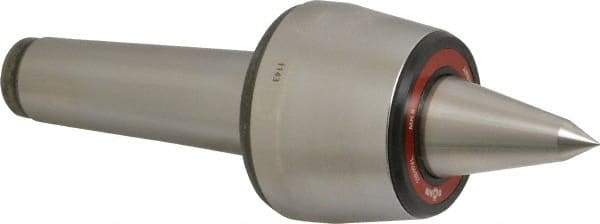

Rohm - MT5 Taper Shank, 3.543" Head Diam 1,200 Lb Capacity Live Center - 3,000 Max RPM, 2.764" Head Length, 1.5748" Point Diam, 2.559" Point Len, 2,640 Lb Max Workpc, 10.478" OAL, Long Point
Item #: 97705651
Brand: Rohm
Model #: 58672
Exact Tooling IR#: 04
Features and Benefits
Long points are used for shaft work, parts with large diameters and where tool clearance is a priority.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 2640.00 |
| Maximum Workpiece Weight (kg) | 1200.00 |
| Point Style | Long |
| Point Diameter (mm) | 40.00 |
| Point Diameter (Decimal Inch) | 1.5748 |
| Point Length (mm) | 65.00 |
| Point Length (Decimal Inch) | 2.5590 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 1200.00 |
| Head Diameter (Decimal Inch) | 3.5430 |
| Head Length (Decimal Inch) | 2.7640 |
| Overall Length (Decimal Inch) | 10.4780 |
| Gage Line Diameter (mm) | 44.40 |
| Point to Gauge Line (mm) | 143.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 3000 |
| Material | Tool Steel |
| Carbide-Tipped | No |
