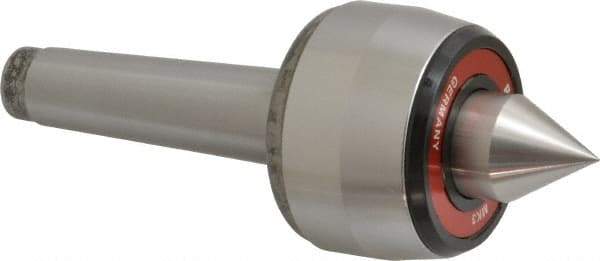

Rohm - MT3 Taper Shank, 2.362" Head Diam 500 Lb Capacity Live Center - 5,000 Max RPM, 1.661" Head Length, 63/64" Point Diam, 1.221" Point Len, 1,100 Lb Max Workpc, 6.319" OAL, Standard Point
Item #: 97239578
Brand: Rohm
Model #: 42776
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 1100.00 |
| Maximum Workpiece Weight (kg) | 500.00 |
| Point Style | Standard |
| Point Diameter (mm) | 25.00 |
| Point Diameter (Decimal Inch) | 0.9843 |
| Point Length (mm) | 31.00 |
| Point Length (Decimal Inch) | 1.2210 |
| Accuracy (mm) | 0.0050 |
| Load Capacity (Lb.) | 500.00 |
| Head Diameter (Decimal Inch) | 2.3620 |
| Head Length (Decimal Inch) | 1.6610 |
| Overall Length (Decimal Inch) | 6.3190 |
| Gage Line Diameter (mm) | 23.83 |
| Point to Gauge Line (mm) | 79.50 |
| Included Angle | 60.00 |
| Bearing Type | Triple Bearing |
| Maximum RPM | 5000 |
| Material | Tool Steel |
| Carbide-Tipped | No |
