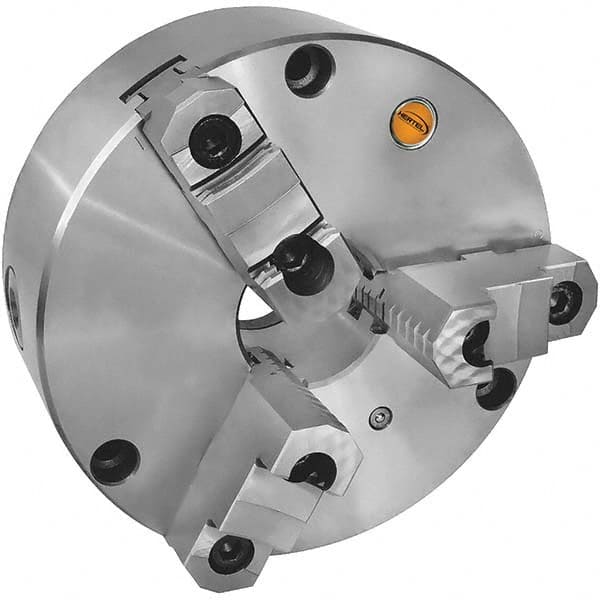

Self-Centering Manual Lathe Chuck: 3-Jaw, 6″ Dia 3,000 Max RPM
Item #: 97018865
Brand: Hertel
Model #: 1-201-0601
Product Specifications
| Chuck Type | Self-Centering |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 1.6535 |
| Body Material | Cast Iron |
| Reversible Jaws | Reversible |
| Chuck Diameter (Decimal Inch) | 6.0000 |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Inch) | 1/8 |
| Maximum Jaw Capacity (Inch) | 6-19/64 |
| Jaw Height (Inch) | 1-45/64 |
| Maximum Rpm | 3000 |
| Axial Runout (Decimal Inch) | 0.0008 |
| Radial Runout (Decimal Inch) | 0.0012 |
| Body Length | 2-17/32 |
| Number Of Jaws | 3 |
