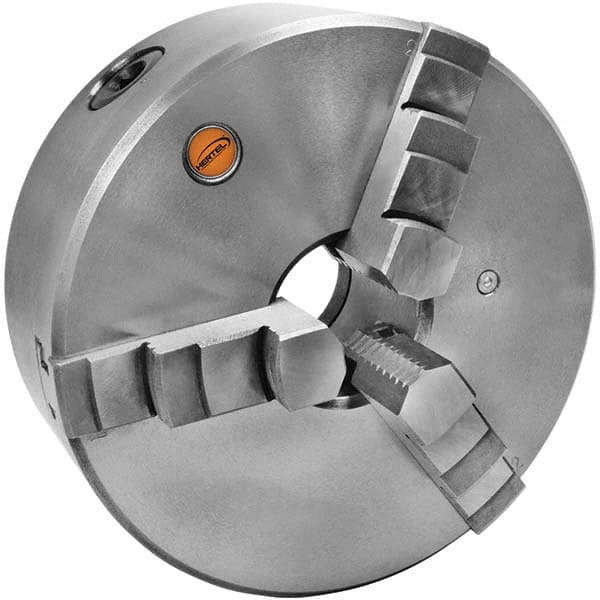

Self-Centering Manual Lathe Chuck: 3-Jaw, 4″ Dia Solid Jaws, 3,500 Max RPM
Item #: 97018782
Brand: Hertel
Model #: 1-202-0401
Product Specifications
| Chuck Type | Self-Centering |
| Jaw Type | Solid |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 0.7874 |
| Body Material | Cast Iron |
| Reversible Jaws | Non-Reversible |
| Chuck Diameter (Decimal Inch) | 4.0000 |
| Chuck Diameter (Inch) | 4 |
| Minimum Jaw Capacity (Inch) | 1/8 |
| Maximum Jaw Capacity (Inch) | 3-17/64 |
| Jaw Height (Inch) | 1-11/16 |
| Maximum Rpm | 3500 |
| Axial Runout (Decimal Inch) | 0.0006 |
| Radial Runout (Decimal Inch) | 0.0008 |
| Body Length | 1-31/32 |
| Number Of Jaws | 3 |
