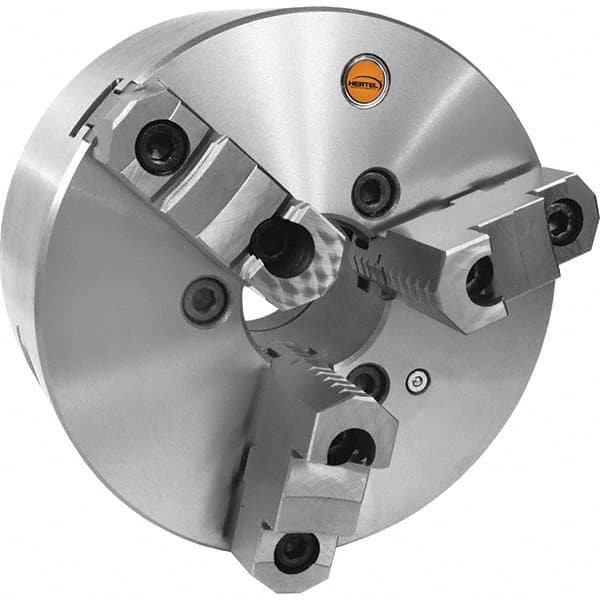

Self-Centering Manual Lathe Chuck: 3-Jaw, 12″ Dia 1,500 Max RPM
Item #: 97018394
Brand: Hertel
Model #: 1-221-1206
Product Specifications
| Chuck Type | Self-Centering |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 4.0551 |
| Body Material | Cast Iron |
| Reversible Jaws | Reversible |
| Chuck Diameter (Decimal Inch) | 12.0000 |
| Chuck Diameter (Inch) | 12 |
| Minimum Jaw Capacity (Inch) | 13/64 |
| Maximum Jaw Capacity (Inch) | 12-13/32 |
| Jaw Height (Inch) | 2-23/64 |
| Maximum Rpm | 1500 |
| Axial Runout (Decimal Inch) | 0.0012 |
| Radial Runout (Decimal Inch) | 0.0020 |
| Body Length | 4-41/64 |
| Number Of Jaws | 3 |
