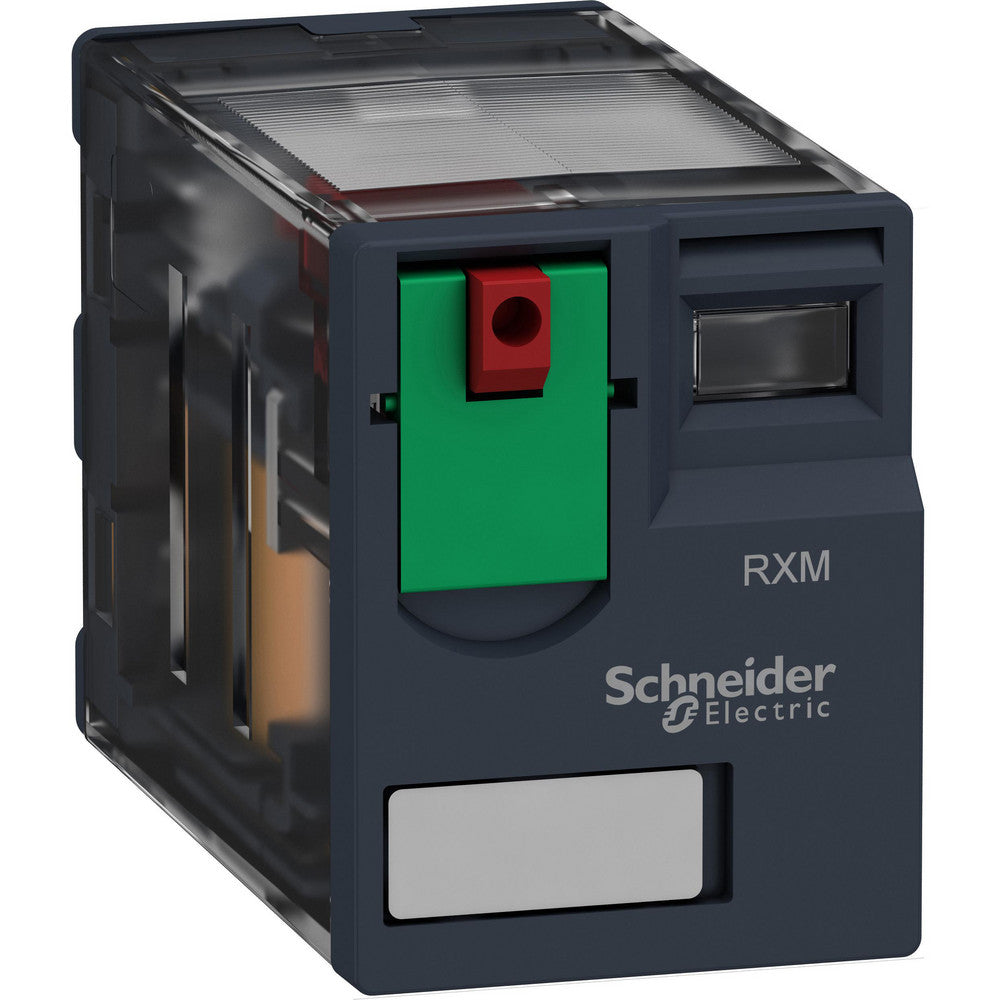

General Purpose Relays; Relay Type: Standard; Coil Voltage: 230; Control Circuit Voltage: 230 VAC; Terminal Type: Plug-in; Minimum Power Rating (VA): 0.17; Maximum Power Rating (VA): 1500; Socket Connection Type: Flat Pin; Amperage: 6; Number Of Pins: 14
Item #: 08165961
Brand: Schneider Electric
Model #: RXM4AB1P7
Product Specifications
| Relay Type | Standard |
| Coil Voltage | 230 |
| Control Circuit Voltage | 230 VAC |
| Terminal Type | Plug-in |
| Minimum Power Rating (VA) | 0.17 |
| Maximum Power Rating (VA) | 1500 |
| Socket Connection Type | Flat Pin |
| Amperage | 6 |
| Number Of Pins | 14 |
| Contact Form | 4CO |
| Base Shape | Ice Cube |
| Wire Connection Type | Screw Terminals |
| Switch Action | Springs Back (Momentary) |
| Mechanical Life Cycles | 10000000 |
| Standards Met | IEC 61984; EN/IEC 61810-1; UL 508; CSA C22.2 No 14 |
| UNSPSC Code | 39122325 |
