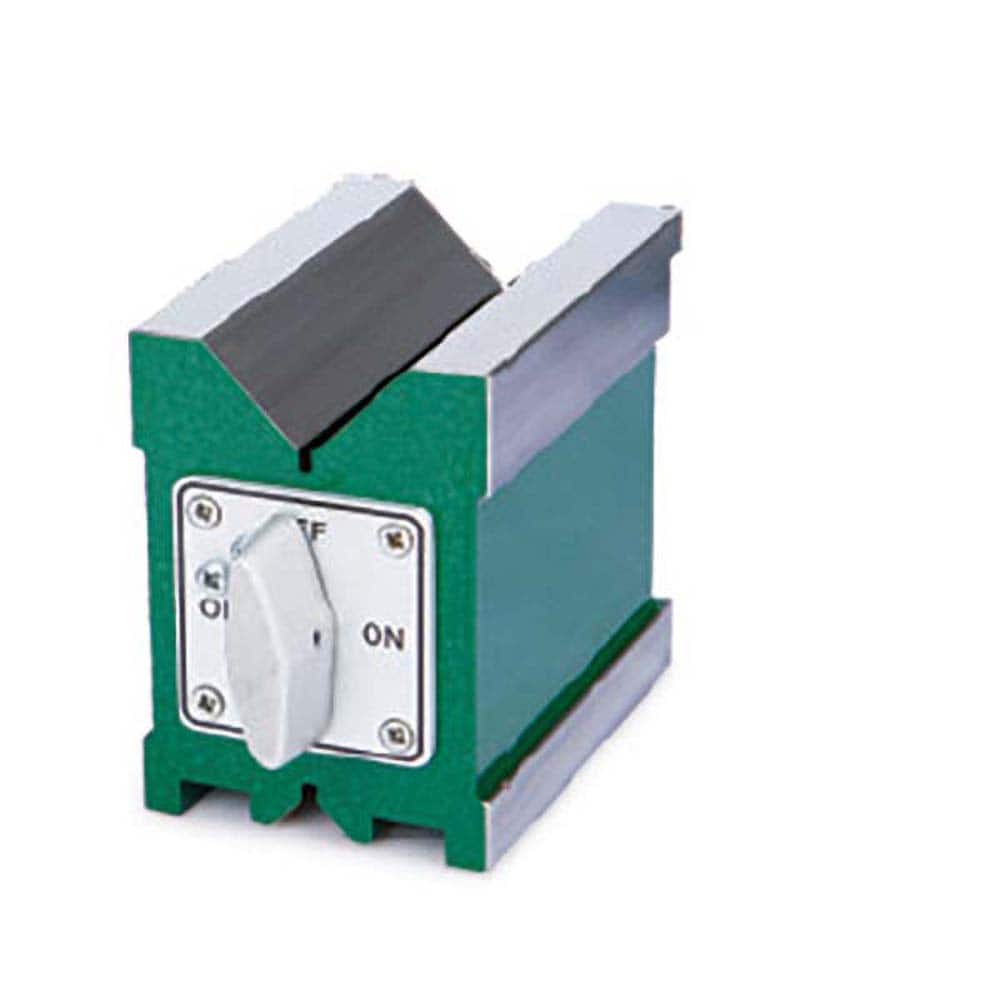

Insize USA LLC - V-Blocks; Type: V-Block ; Sold As: Individual ; Overall Width (Decimal Inch): 2.2000 ; V Angle: 90.00 ; Minimum Capacity of V (Decimal Inch): 0.2000 ; Maximum Capacity of V (Decimal Inch): 1.5700
Item #: 96918503
Brand: Insize USA LLC
Model #: 6889-11
Product Specifications
V-Blocks; Type: V-Block ; Sold As: Individual ; Overall Width (Decimal Inch): 2.2000 ; V Angle: 90.00 ; Minimum Capacity of V (Decimal Inch): 0.2000 ; Maximum Capacity of V (Decimal Inch): 1.5700
| Type | V-Block |
| Sold As | Individual |
| Overall Width (Decimal Inch) | 2.2000 |
| V Angle | 90.00 |
| Minimum Capacity of V (Decimal Inch) | 0.2000 |
| Maximum Capacity of V (Decimal Inch) | 1.5700 |
| Material | Hardened Steel |
| Squareness Per 1 Inch (Decimal Inch) | 0.0002 |
| Parallelism (Decimal Inch) | 0.0002 |
| Hardness | 60 HRC |
| Accuracy (Inch) | 0.0002 |
| Accuracy (Decimal Inch) | 0.0002 |
| V Accuracy (Decimal Inch) | 0.0002 |
| Features | Hardened, High Accuracy, Strong Magnetic Force; All Working Surfaces Are Hardened to HRC60?2; Magnetic Force on Top, Bottom and Two V Grooves; V Groove on The Top For Large Shafts; V Groove on The Bottom For Small Shafts; Suitable For Cast Iron Surface Pl |
| Magnetic | Yes |
| Trade Name | Insize USA LLC |
| Load Capacity (Lb.) | 165.000 |
| Includes | Case |
