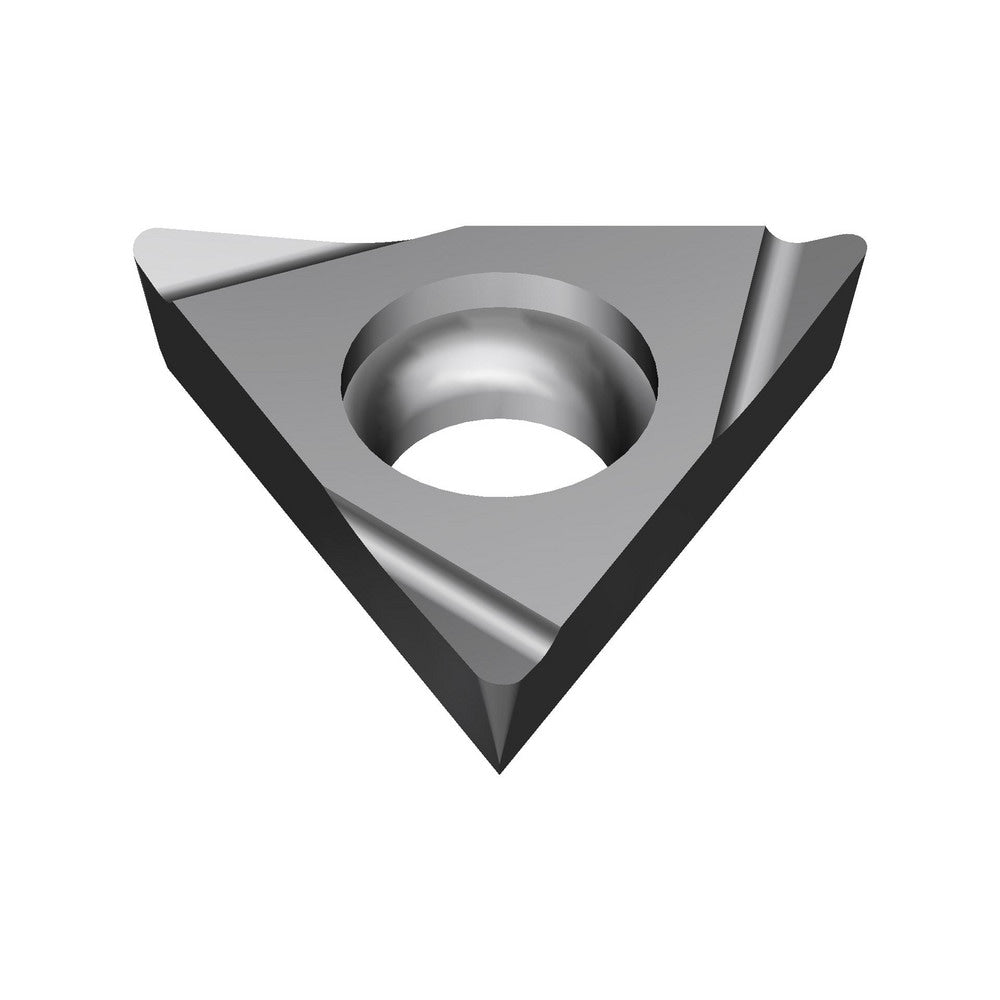

Turning Insert: TPGT631LAY H1, Carbide
Item #: 23215866
Brand: Sumitomo
Model #: 1033AUV
Product Specifications
| ANSI Insert Code | TPGT631 |
| ISO Insert Code | TPGT |
| Relief Angle | 11 |
| Insert Style | TPGT |
| Corner Radius (mm) | 0.40 |
| Included Angle | 60 |
| Manufacturer Grade | H1 |
| Coating/Finish | Bright/Uncoated |
| Insert Hand | Left Hand |
| Insert Thickness | 2.38 |
| Series | H1 |
| Inscribed Circle (mm) | 4.76 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Hole Diameter (Decimal Inch) | 2.4000 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Insert Length (mm) | 8.20 |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material Code | K; N |
| Chip Breaker | LAY |
| ANSI Size Code | 631 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 631 |
