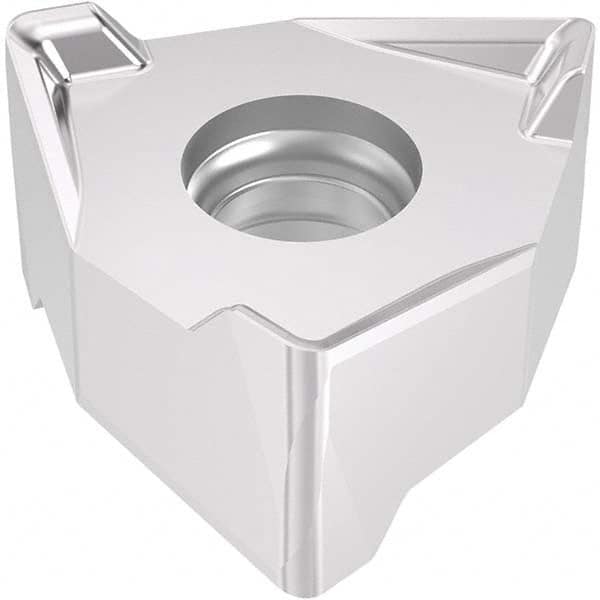

XNEX080608TR-ME09 Carbide Milling Insert TiCN/Al2O3 Finish, 19/64″ Long x 0.2539″ Thick x 19/64″ Wide
Item #: 96593371
Brand: Seco
Model #: 03272907
Product Specifications
| Insert Style | XNEX |
| Insert Size | 080608 |
| Insert Material | Solid Carbide |
| Material Grade | Fine Grain |
| Manufacturer Grade | MP2501 |
| Length (Inch) | 19/64 |
| Inscribed Circle (Decimal Inch) | 0.4913 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Coating Process | CVD |
| Maximum Depth of Cut (mm) | 3.75 |
| Rake | Negative |
| Rake Angle | 27.00 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | XNEX080608TR-ME09 |
| Cutter Series Compatibility | R217; 220.96 |
| Chip Breaker | ME09 |
| Shape | Trigon |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2539 |
