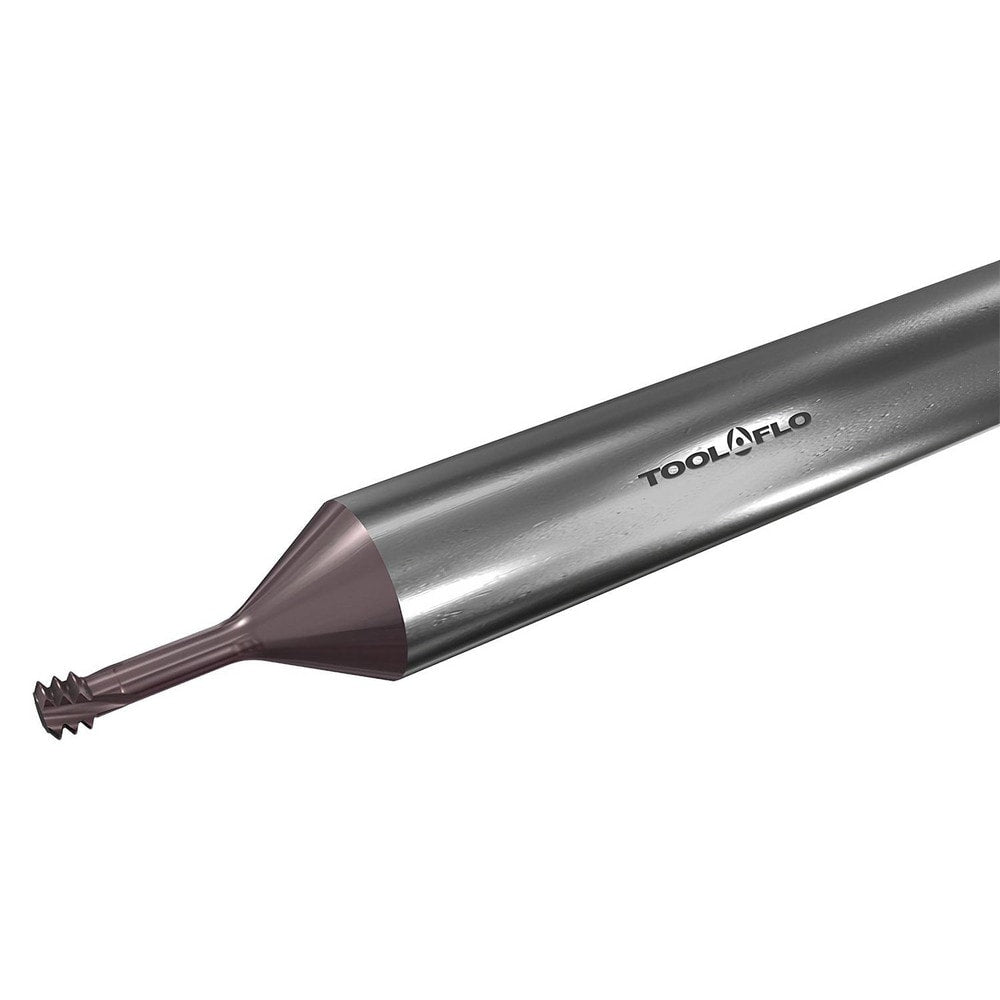

Helical Flute Thread Mill: M10x1.5 - M16x1.5, Internal, 3 Flute, 8.00 mm Shank Dia, Carbide
Item #: 02129385
Brand: Tool-Flo
Model #: 1271452
Product Specifications
| Material | Carbide |
| Thread Size (mm) | M10x1.5 - M16x1.5 |
| Thread Type | Internal |
| Shank Diameter (mm) | 8.00 |
| Cutting Diameter (mm) | 7.80 |
| Length of Cut (mm) | 23.00 |
| Overall Length (mm) | 64.00 |
| Thread Standard | ISO |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Pitch (mm) | 1.50 |
| Number Of Flutes | 3 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
