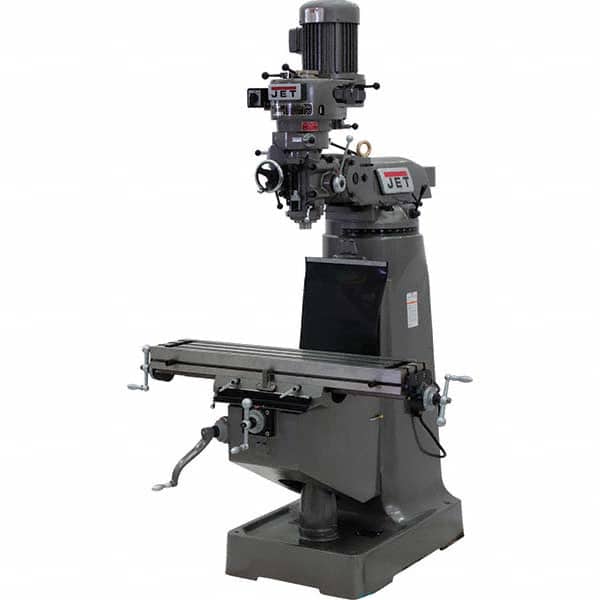

Knee Milling Machine: 4.5″, Variable Speed Pulley Control, 3 Phase 80 to 2,720 RPM, R8 Spindle Taper
Item #: 95176111
Brand: Jet
Model #: 690095
Product Specifications
| Minimum Spindle to Column Distance (Decimal Inch) | 4.5000 |
| Minimum Spindle to Column Distance (Inch) | 4-1/2 in |
| Minimum Spindle to Column Distance (mm) | 19.00 |
| Minimum Spindle Speed | 80 RPM |
| Maximum Spindle Speed | 2720 RPM |
| Forward Head Tilt (Degrees) | 45 |
| Phase | 3 |
| Left-Hand Head Tilt (Degrees) | 90 |
| Left-hand Head Tilt | 90.0 ? |
| Right-Hand Head Tilt (Degrees) | 45 |
| Right-hand Head Tilt | 45.0 ? |
| Cross Travel (Decimal Inch) | 12.5000 |
| Cross Travel | 12.5 in |
| Longitudinal Travel | 23.875 in |
| Longitudinal Travel (Decimal Inch) | 23.8750 |
| Knee Travel (Decimal Inch) | 14.5000 |
| Knee Travel | 14.5 in |
| Quill Diameter (Inch) | 3-3/8 |
| Voltage | 115; 230 |
| Table Load Capacity (kg) | 3.00 |
| Table Length (Inch) | 9 |
| Table Width (Inch) | 42 |
| Ram Turret Swivel (Degrees) | 1 |
| Ram Travel Length (Decimal Inch) | 13.3750 |
| Ram Travel Length (Inch) | 13-3/8 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Travel Length (Inch) | 5 |
| Number of Spindle Speeds | 8 |
| Includes | ACU-RITE 203 |
| Maximum Spindle To Column Distance (mm) | 550.00 |
