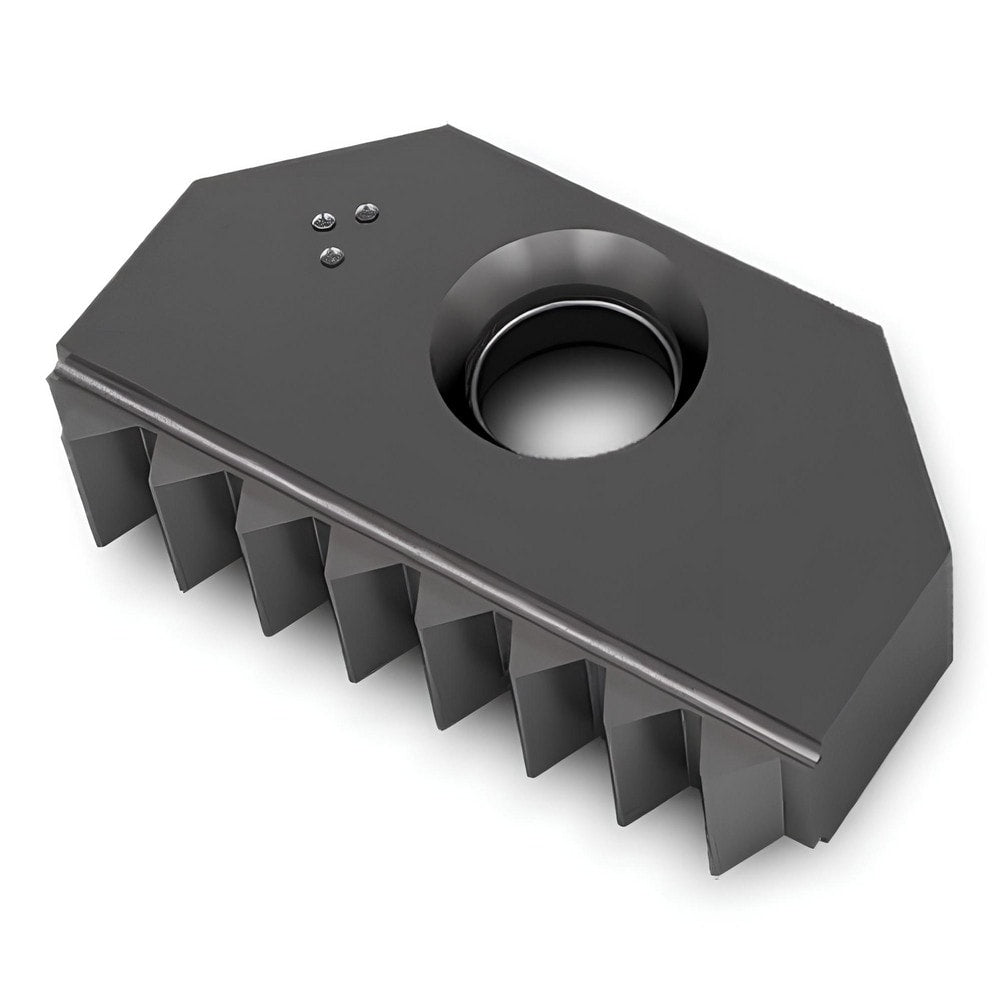

Brand: Ingersoll Cutting Tools / Part #: 5669474
Item #: 99315327
Brand: Ingersoll Cutting Tools
Model #: 5669474
Product Specifications
| Insert Style | LYEU |
| Insert Size Code | 2111 |
| Insert Material | Carbide |
| Pitch (mm) | 11.00 |
| Manufacturer Grade | IN2005 |
| Thread Type | Internal & External |
| Thread Standard | Whitworth |
| Overall Length (Decimal Inch) | 0.8270 |
| Series | LYEU |
| Coating Process | PVD |
| Conical | No |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | LYEU21110BW-1 IN2005 |
| Iso Code | LYEU21110BW-1 IN2005 |
| Manufacturers Catalog Number | LYEU21110BW-1 IN2005 |
| Coating Classification | PVD |
| Thickness (Decimal Inch - 4 Decimals) | 0.1890 |
| Width (Mm - 2 Decimals) | 12.60 |
| Coating/Finish | TiAlN |
