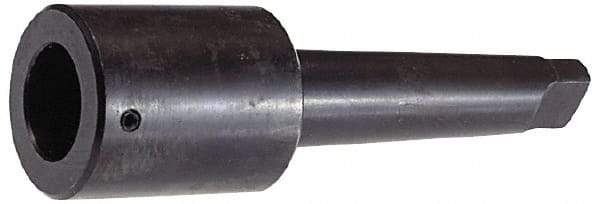

Collis Tool - 2-1/8 Inch Tap, 3 Inch Tap Entry Depth, MT5 Taper Shank, Standard Tapping Driver - 3-3/4 Inch Projection, 2-3/4 Inch Nose Diameter, 1.769 Inch Tap Shank Diameter, 1.327 Inch Tap Shank Square
Item #: 94080025
Brand: Collis Tool
Model #: 70506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Driver Design | Standard |
| Tap Size | 2-1/8 |
| Outside Shank Type | Taper Shank |
| Outside Shank Taper Size | MT5 |
| Depth Tap Enters (Decimal Inch) | 3.0000 |
| Nose Diameter (Inch) | 2-3/4 |
| Projection (Inch) | 3-3/4 |
| Tap Shank Diameter (Decimal Inch) | 1.7690 |
| Tap Shank Square (Decimal Inch) | 1.3270 |
| PSC Code | 5136 |
