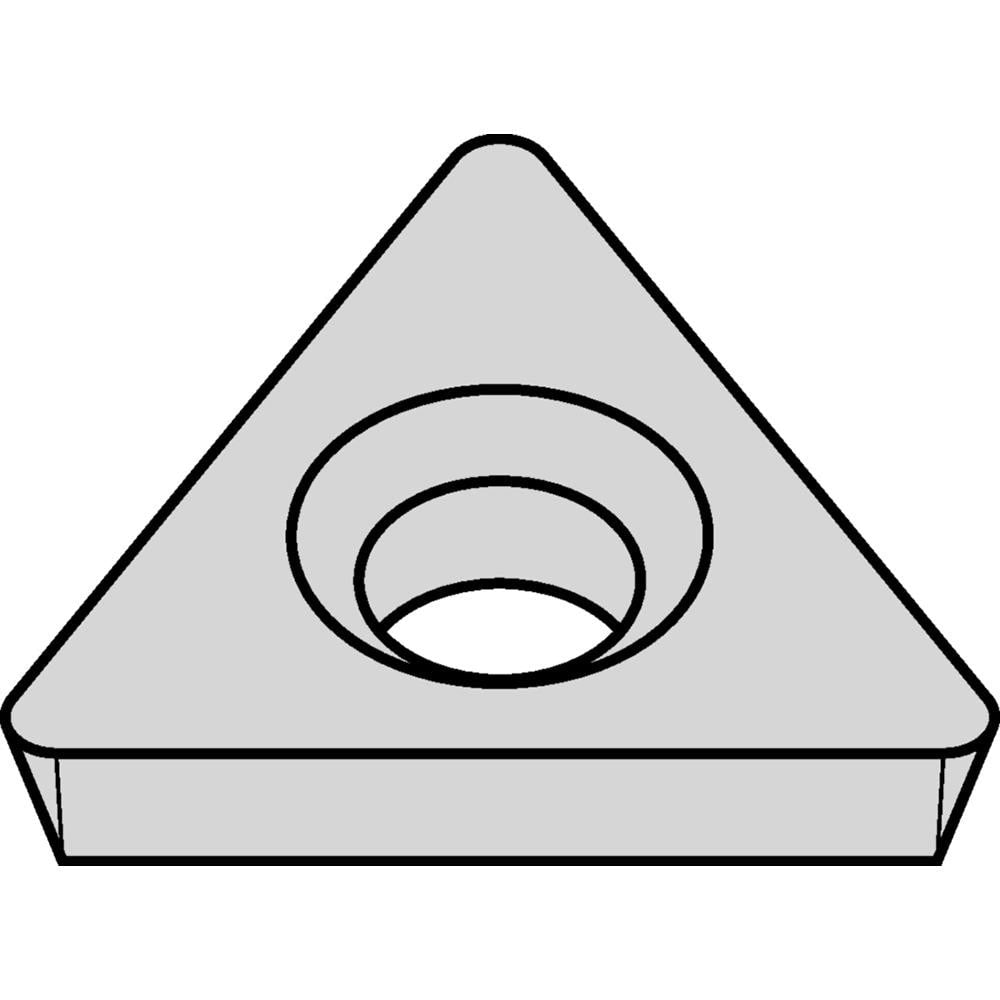

Boring Inserts; Insert Style: TDHB; Insert Size Code: 130805; Insert Material: Cermet; Material Grade: P15; Manufacturer Grade: TN7
Item #: 16454654
Brand: Widia
Model #: 2828720
Product Specifications
| Insert Style | TDHB |
| Insert Size Code | 130805 |
| Insert Material | Cermet |
| Material Grade | P15 |
| Manufacturer Grade | TN7 |
| Inscribed Circle (Decimal Inch) | 0.1600 |
| Hole Diameter (Decimal Inch) | 0.0950 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0070 |
| Relief Angle | 15 |
| Rake | Positive |
| Chipbreaker | Flat Top |
| Series | TDHB |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M; N |
| Iso Code | TDHB07S102 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 2828720 |
| Length (Decimal Inch - 4 Decimals) | 0.2770 |
| Width (Decimal Inch - 4 Decimals) | 0.16 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0923 |
