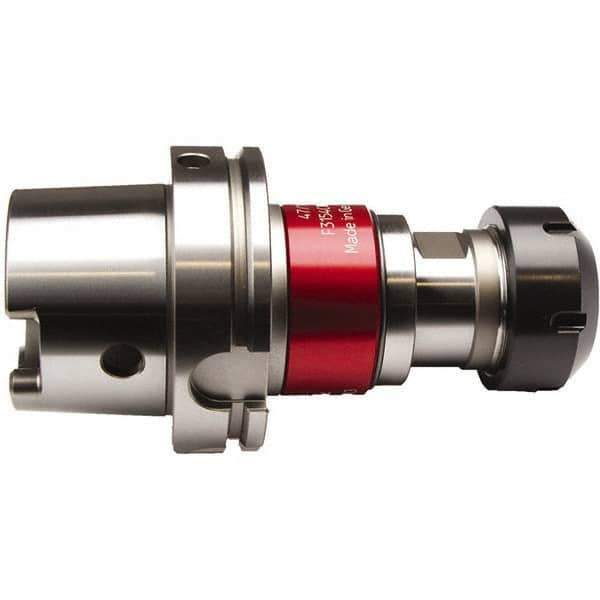

Emuge - HSK100A Taper Shank Tension & Compression Tapping Chuck - M12 Min Tap Capacity, 138mm Projection, Through Coolant
Item #: 93156404
Brand: Emuge
Model #: F3154C06.1
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Minimum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 5.4331 |
| Projection (mm) | 138.00 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 9.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.3543 |
| Maximum Collet Capacity (Decimal Inch) | 0.8661 |
| Maximum Collet Capacity (mm) | 22.00 |
| Collet System | ER Tap |
| Holder Series | Softsynchro 4 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Tap Depth (mm) | 31.00 |
| Tension (mm) | 0.70 |
| Compression (Decimal Inch) | 0.0276 |
| Compression (mm) | 0.70 |
| Overall Length (mm) | 188.00 |
| Overall Length (Decimal Inch) | 7.4016 |
| Through Coolant | Yes |
