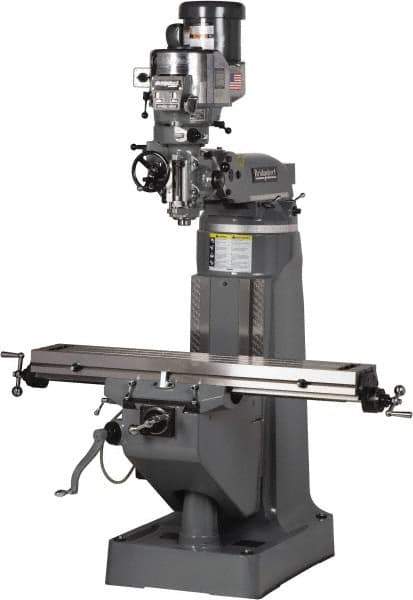

Bridgeport - 9" Table Width x 49" Table Length, Variable Speed Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 2 hp
Item #: 92813351
Brand: Bridgeport
Model #: 13061101-CHROM
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| Table Length (Inch) | 49 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 36.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Number of Spindle Speeds | Variable |
| Maximum Spindle Speed (RPM) | 4200.00 |
| Minimum Spindle Speed (RPM) | 60.00 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | R8 |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Spindle Power Feed Rate Per Minute (mm/rev) | 0.04 |
| Minimum Spindle to Table Distance (Inch) | 3 |
| Maximum Spindle to Table Distance (mm) | 463.55 |
| Maximum Spindle to Table Distance (Inch) | 18-1/4 |
| Maximum Spindle to Table Distance (Decimal Inch) | 18.2500 |
| Minimum Spindle to Column Distance (mm) | 64.00 |
| Minimum Spindle to Column Distance (Decimal Inch) | 6.7500 |
| Maximum Spindle To Column Distance (Decimal Inch) | 18.7500 |
| Table Load Capacity (Lb.) | 750.00 |
| Table Load Capacity (kg) | 340.19 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (mm) | 304.80 |
| Ram Travel Length (Inch) | 12 |
| Ram Travel Length (Decimal Inch) | 12.0000 |
| Horsepower (HP) | 2.00 |
| Voltage | 230/460; 208/230/460 |
| Overall Length (Inch) | 60 |
| Overall Height (Inch) | 86 |
| Overall Depth (Inch) | 61 |
