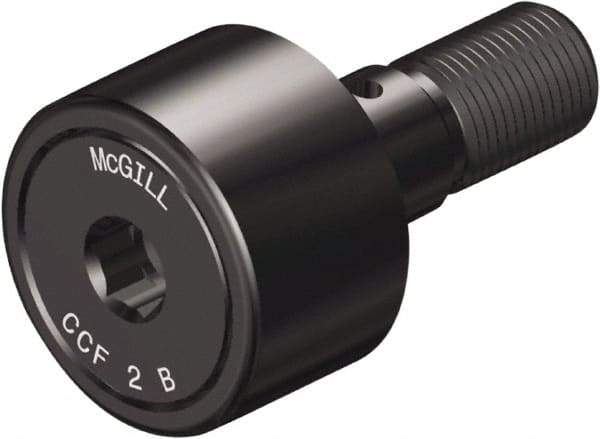

McGill - 3-1/2" Roller Diam x 2" Width, 1-3/8" Stud Diam x 2-3/4" Length, Crowned Sealed Stud Cam Follower with Hex - Steel, 1-3/8" Thread Length, 1-3/8-12 Thread, 4.78" OAL, 22,800 Lb Dynamic Cap, 31,625 Lb Static Cap
Item #: 92611706
Brand: McGill
Model #: CCF 3 1/2 SB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Crowned Sealed Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 3.5000 |
| Roller Diameter (Inch) | 3-1/2 |
| Roller Width (Decimal Inch) | 2.0000 |
| Roller Width (Inch) | 2 |
| Stud Diameter (Decimal Inch) | 1.3750 |
| Dynamic Load Capacity (Lb.) | 22800 |
| Dynamic Load Capacity (N) | 101414 |
| Static Load Capacity (Pounds) | 31625.00 |
| Static Load Capacity | 140668 |
| Length (Decimal Inch) | 4.780 |
| Thread Size | 1-3/8-12 |
| Material | Steel |
| Stud Length (Decimal Inch) | 2.7500 |
| Stud Length (Inch) | 2-3/4 |
| Thread Length (Inch) | 1-3/8 |
| McGill Part Number | CCF 3 1/2 SB |
| Roller Type | Needle Roller |
