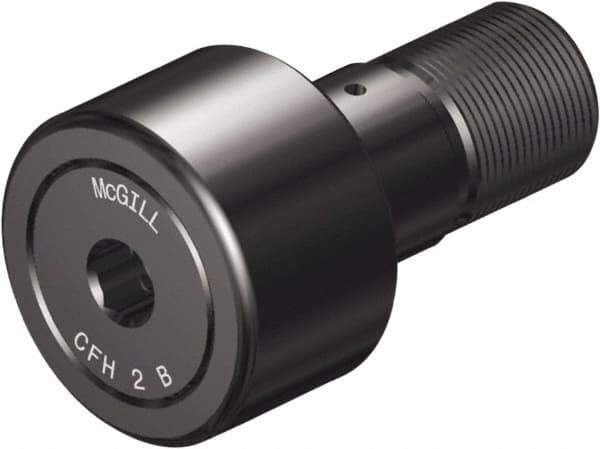

McGill - 2" Roller Diam x 1-1/4" Width, 7/8" Stud Diam x 2" Length, Sealed Heavy Stud Cam Follower with Hex - Steel, 1" Thread Length, 1-1/8-12 Thread, 3.28" OAL, 8,090 Lb Dynamic Cap, 21,140 Lb Static Cap
Item #: 92611169
Brand: McGill
Model #: CFH 2 SB
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Sealed Heavy Stud Cam Follower with Hex |
| Roller Diameter (Decimal Inch) | 2.0000 |
| Roller Diameter (Inch) | 2 |
| Roller Width (Decimal Inch) | 1.2500 |
| Roller Width (Inch) | 1-1/4 |
| Stud Diameter (Decimal Inch) | 1.1250 |
| Dynamic Load Capacity (Lb.) | 8090 |
| Dynamic Load Capacity (N) | 35984 |
| Static Load Capacity (Pounds) | 21140.00 |
| Static Load Capacity | 94031 |
| Length (Decimal Inch) | 3.280 |
| Thread Size | 1-1/8-12 |
| Material | Steel |
| Stud Length (Decimal Inch) | 2.0000 |
| Stud Length (Inch) | 2 |
| Thread Length (Inch) | 1 |
| McGill Part Number | CFH 2 SB |
| Roller Type | Needle Roller |
