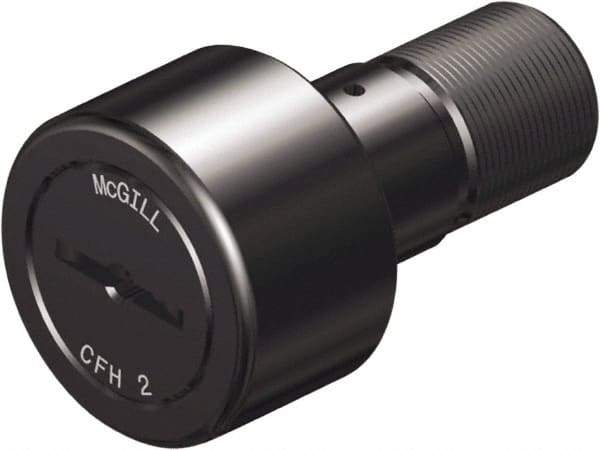

McGill - 1-3/4" Roller Diam x 1" Width, 3/4" Stud Diam x 1-3/4" Length, Heavy Stud Cam Follower - Steel, 7/8" Thread Length, 1-1/4 Thread, 2.78" OAL, 6,385 Lb Dynamic Cap, 15,840 Lb Static Cap
Item #: 92610807
Brand: McGill
Model #: CFH 1 3/4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Heavy Stud Cam Follower |
| Roller Diameter (Decimal Inch) | 1.7500 |
| Roller Diameter (Inch) | 1-3/4 |
| Roller Width (Decimal Inch) | 1.0000 |
| Roller Width (Inch) | 1 |
| Stud Diameter (Decimal Inch) | 1.0000 |
| Dynamic Load Capacity (Lb.) | 6385 |
| Dynamic Load Capacity (N) | 28400 |
| Static Load Capacity (Pounds) | 15840.00 |
| Static Load Capacity | 70456 |
| Length (Decimal Inch) | 2.780 |
| Thread Size | 1-1/4 |
| Material | Steel |
| Stud Length (Decimal Inch) | 1.7500 |
| Stud Length (Inch) | 1-3/4 |
| Thread Length (Inch) | 7/8 |
| McGill Part Number | CFH 1 3/4 |
| Roller Type | Needle Roller |
