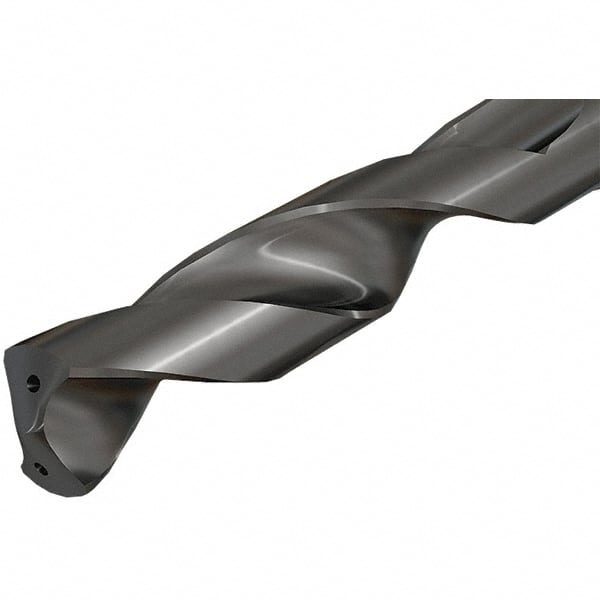

Screw Machine Length Drill Bit: 0.185″ Dia, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SCD-ACP3
Item #: 92546472
Brand: Iscar
Model #: 5530755
Product Specifications
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1870 |
| Drill Bit Size (Decimal Inch) | 0.1850 |
| Overall Length (Decimal Inch) | 2.5800 |
| Series | SCD-ACP3 |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.8000 |
| Shank Length (Decimal Inch) | 1.4400 |
| Drill Point Length (Decimal Inch) | 0.0340 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | 0.00016 to 0.00063 in |
| Flute Length (Decimal Inch) | 1.0500 |
| Flute Length (Inch) | 1-3/64 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
| Material Grade | Submicron |
