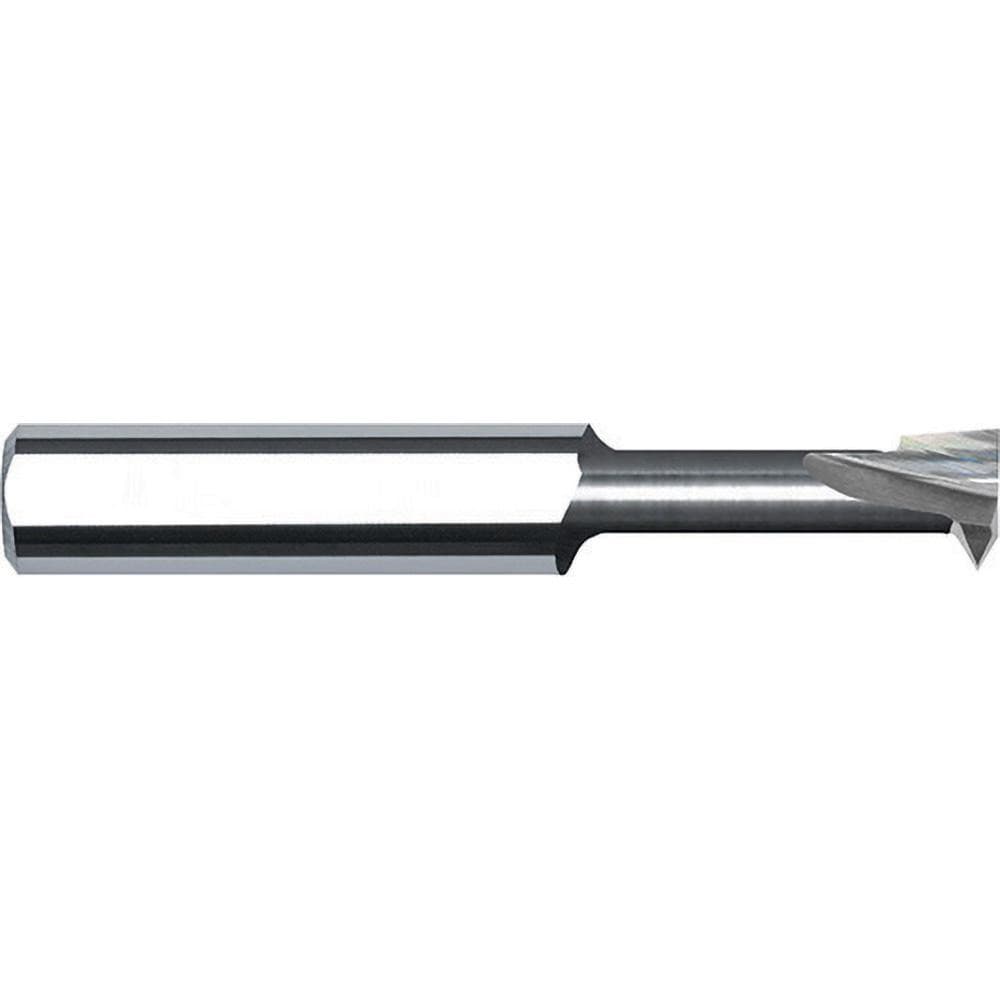

Boring/Threading Bar: 1/4" Min Bore Dia, 1" Max Bore Depth, Right Hand, 1/4" Shank Dia, Micrograin Solid Carbide
Item #: 09281148
Brand: Internal Tool
Model #: 50-1110
Product Specifications
| Boring Bar Type | Boring; Threading |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.2500 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Projection (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Series | 50 |
| Maximum Bore Depth (Inch) | 1 |
| Minimum Bore Diameter (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 2.5000 |
| Primary Workpiece Material | Bronze; Aluminum; Stainless Steel; Brass; Cast Iron; Titanium; Plastic; Nickel; Magnesium; Copper; Steel |
| UNSPSC Code | 23241601 |
