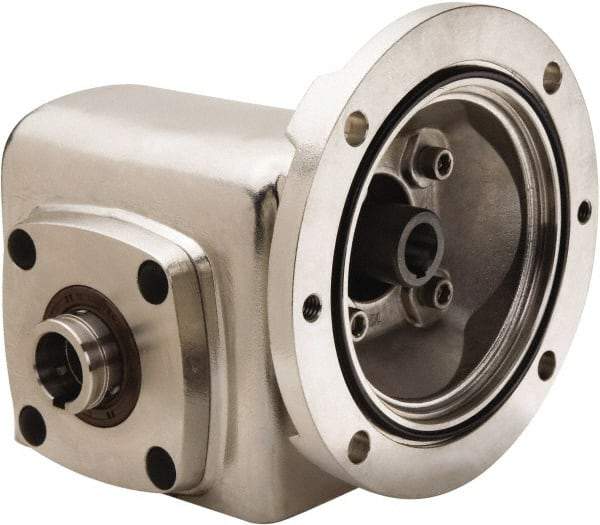

Boston Gear - 2.62 Centerline Distance, 10:1, 175 RPM Output, 3.94 Input Horsepower, 1,345 Lbs. Max Torque, Speed Reducer - Part No. SSHF72610KB5HSP23, 1-7/16" Shaft Diam, Hollow Shaft, 5/8" Bore, 5.56" High, 56C NEMA
Item #: 91242859
Brand: Boston Gear
Model #: H12911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 10:1 |
| NEMA Size | 56C |
| PartNo | SSHF72610KB5HSP23 |
| Shaft Style | Hollow Shaft |
| Bore Size (Decimal Inch) | 0.625 |
| Shaft Diameter (Decimal Inch) | 1.4375 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1345.00 |
| Maximum Input Horsepower | 3.94 |
| Output RPM at 1750 Input | 175.0 |
