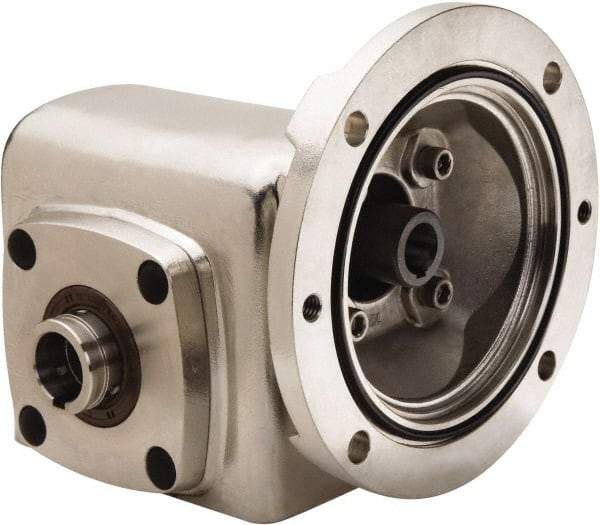

Boston Gear - 2.62 Centerline Distance, 50:1, 35 RPM Output, 1.08 Input Horsepower, 1,484 Lbs. Max Torque, Speed Reducer - Part No. SSHF72650KB5HSP23, 1-7/16" Shaft Diam, Hollow Shaft, 5/8" Bore, 5.56" High, 56C NEMA
Item #: 91242768
Brand: Boston Gear
Model #: D01741
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 50:1 |
| NEMA Size | 56C |
| PartNo | SSHF72650KB5HSP23 |
| Shaft Style | Hollow Shaft |
| Bore Size (Decimal Inch) | 0.625 |
| Shaft Diameter (Decimal Inch) | 1.4375 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1484.00 |
| Maximum Input Horsepower | 1.08 |
| Output RPM at 1750 Input | 35.0 |
