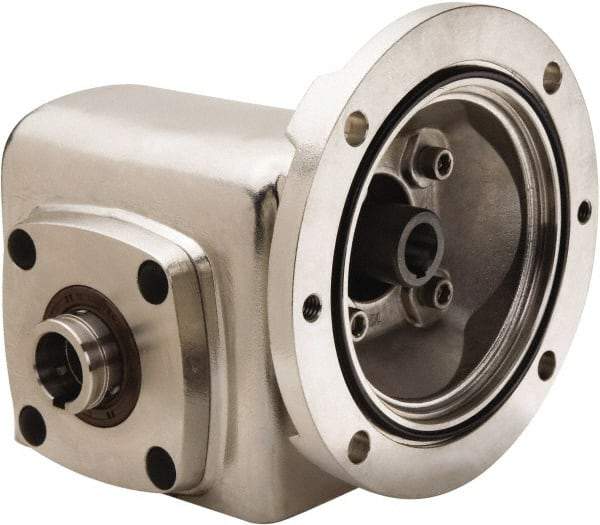

Boston Gear - 3-1/4 Centerline Distance, 40:1, 44 RPM Output, 2.1 Input Horsepower, 2,444 Lbs. Max Torque, Speed Reducer - Part No. SSHF73240KB7HSP31, 1-15/16" Shaft Diam, Hollow Shaft, 7/8" Bore, 6-3/4" High, 140TC NEMA
Item #: 91242727
Brand: Boston Gear
Model #: H09511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.250 |
| Ratio | 40:1 |
| NEMA Size | 140TC |
| PartNo | SSHF73240KB7HSP31 |
| Shaft Style | Hollow Shaft |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.9375 |
| Height (Inch) | 6.75 |
| Maximum Torque Inch/Lbs (Pounds) | 2444.00 |
| Maximum Input Horsepower | 2.10 |
| Output RPM at 1750 Input | 44.0 |
