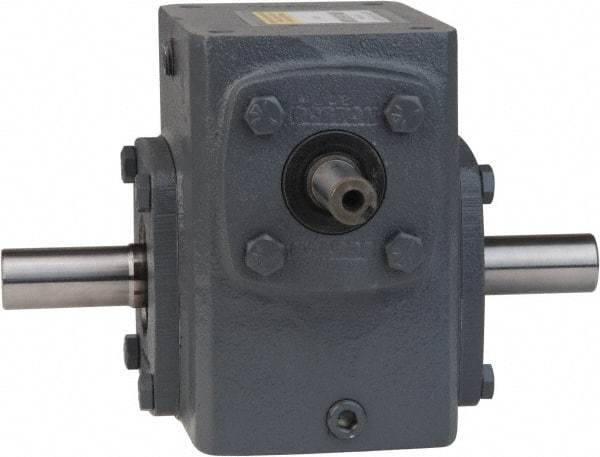

Boston Gear - 3-1/4 Centerline Distance, 25:1, 70 RPM Output, 3.85 Input Horsepower, 2,891 Lbs. Max Torque, Speed Reducer - Part No. 732-25-H, 7/8" Shaft Diam, Double Shaft Left & Right, 6-3/4" High
Item #: 91236794
Brand: Boston Gear
Model #: 51772
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.250 |
| Ratio | 25:1 |
| PartNo | 732-25-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Height (Inch) | 6.75 |
| Maximum Torque Inch/Lbs (Pounds) | 2891.00 |
| Maximum Input Horsepower | 3.85 |
| Output RPM at 1750 Input | 70.0 |
