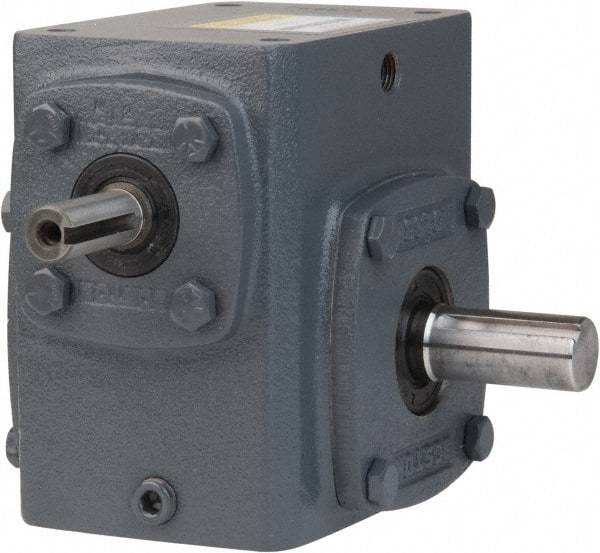

Boston Gear - 2.62 Centerline Distance, 10:1, 175 RPM Output, 3.94 Input Horsepower, 1,345 Lbs. Max Torque, Speed Reducer - Part No. 726-10-J, 3/4" Shaft Diam, Single Shaft Right, 5.56" High
Item #: 91236133
Brand: Boston Gear
Model #: 51740
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 10:1 |
| PartNo | 726-10-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1345.00 |
| Maximum Input Horsepower | 3.94 |
| Output RPM at 1750 Input | 175.0 |
