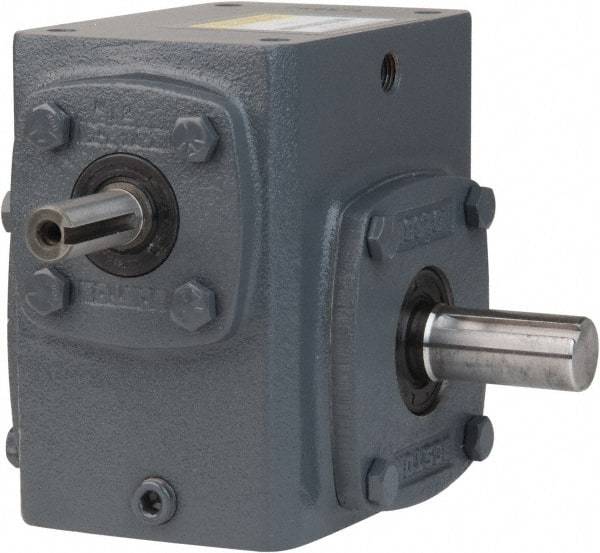

Boston Gear - 3-3/4 Centerline Distance, 50:1, 35 RPM Output, 2.71 Input Horsepower, 3,626 Lbs. Max Torque, Speed Reducer - Part No. 738-50-J, 1" Shaft Diam, Single Shaft Right, 7.63" High
Item #: 91236034
Brand: Boston Gear
Model #: 51803
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 50:1 |
| PartNo | 738-50-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 1.0000 |
| Height (Inch) | 7.63 |
| Maximum Torque Inch/Lbs (Pounds) | 3626.00 |
| Maximum Input Horsepower | 2.71 |
| Output RPM at 1750 Input | 35.0 |
