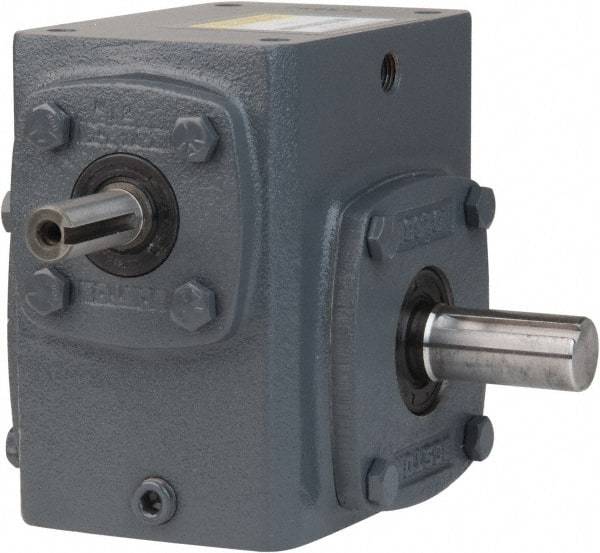

Boston Gear - 2.62 Centerline Distance, 50:1, 35 RPM Output, 1.08 Input Horsepower, 1,484 Lbs. Max Torque, Speed Reducer - Part No. 726-50-J, 3/4" Shaft Diam, Single Shaft Right, 5.56" High
Item #: 91235796
Brand: Boston Gear
Model #: 51758
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.620 |
| Ratio | 50:1 |
| PartNo | 726-50-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Height (Inch) | 5.56 |
| Maximum Torque Inch/Lbs (Pounds) | 1484.00 |
| Maximum Input Horsepower | 1.08 |
| Output RPM at 1750 Input | 35.0 |
