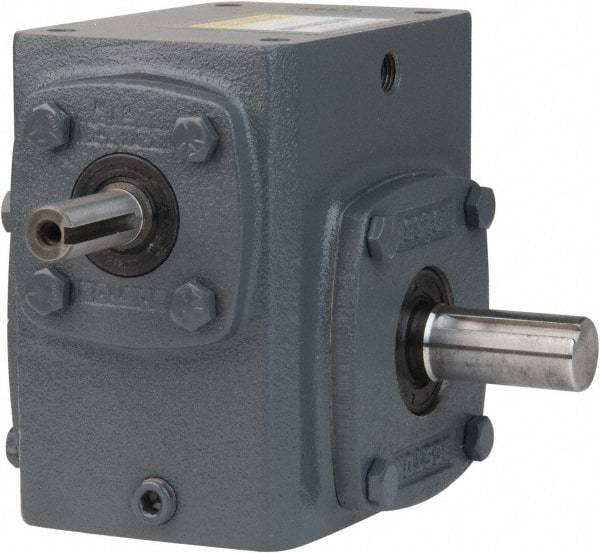

Boston Gear - 3-1/4 Centerline Distance, 15:1, 117 RPM Output, 5.8 Input Horsepower, 2,782 Lbs. Max Torque, Speed Reducer - Part No. 732-15-J, 7/8" Shaft Diam, Single Shaft Right, 6-3/4" High
Item #: 91235754
Brand: Boston Gear
Model #: 51767
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.250 |
| Ratio | 15:1 |
| PartNo | 732-15-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.8750 |
| Height (Inch) | 6.75 |
| Maximum Torque Inch/Lbs (Pounds) | 2782.00 |
| Maximum Input Horsepower | 5.80 |
| Output RPM at 1750 Input | 117.0 |
