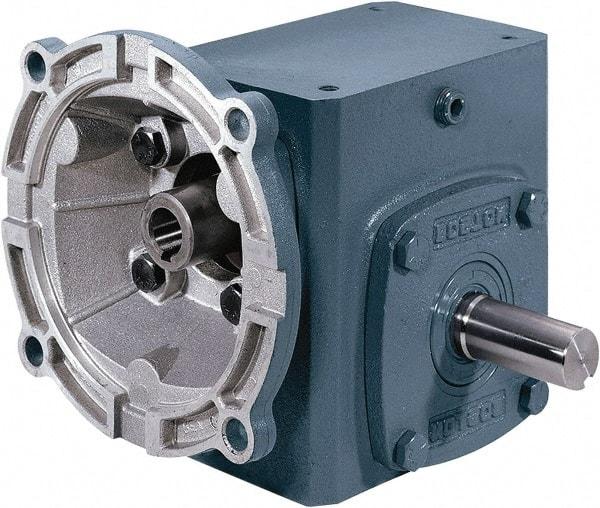

Boston Gear - 2.38 Centerline Distance, 60:1, 29 RPM Output, 6.29 Input Horsepower, 9,528 Lbs. Max Torque, Speed Reducer - Part No. RF760-60-B9-J, Single Shaft Right, 1-3/8" Bore, 12-1/2" High, 180TC NEMA
Item #: 91229542
Brand: Boston Gear
Model #: D03599
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.380 |
| Ratio | 60:1 |
| NEMA Size | 180TC |
| PartNo | RF760-60-B9-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 1.3750 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 9528.00 |
| Maximum Input Horsepower | 6.29 |
| Output RPM at 1750 Input | 29.0 |
