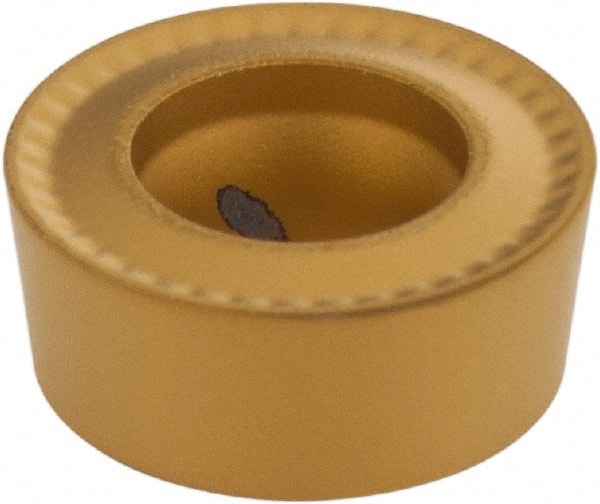

RCMT0803M0SR IC9150 Carbide Turning Insert TiCN/Al2O3/TiN Finish, 8mm Inscribed Circle, 1/8″ Thick, Round, Series Isoturn
Item #: 91144204
Brand: Iscar
Model #: 5507646
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 0803M0 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC9150 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1770 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 7 |
| Series | Isoturn |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Stocking Category | D |
| Chip Breaker | SR |
| Coating/Finish | TiCN; TiN; Al2O3 |
