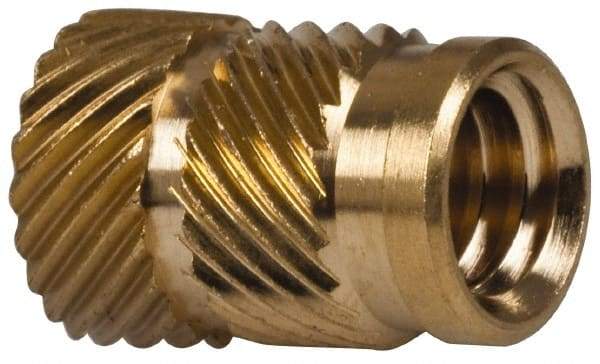

E-Z LOK - 5/16" Drill, 1/4 20 UNC, 0.341" Diam, Brass Unheaded Heat Installed Threaded Insert - 0.315" Hole, 1/2" OAL
Item #: 91093732
Brand: E-Z LOK
Model #: HI-420-WH
Exact Tooling IR#: 04
Features and Benefits
Unheaded types do not have a flange. They sit flush with the workpiece material, which creates a smooth, flush finish.
Brass is an alloy of copper and zinc that is durable, nonmagnetic and conductive.
| Product Specifications | |
|---|---|
| Type | Unheaded |
| For Material Type | Thermoplastic |
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-20 |
| Material | Brass |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Diameter (Decimal Inch) | 0.3410 |
| Hole Diameter (Decimal Inch) | 0.3150 |
| Pilot Diameter (Decimal Inch) | 0.3630 |
| Minimum Wall Thickness (Decimal Inch) | 0.1300 |
| Minimum Grip (Decimal Inch) | 0.1300 |
| Drill Size (Inch) | 5/16 |
| Thread Standard | UNC |
