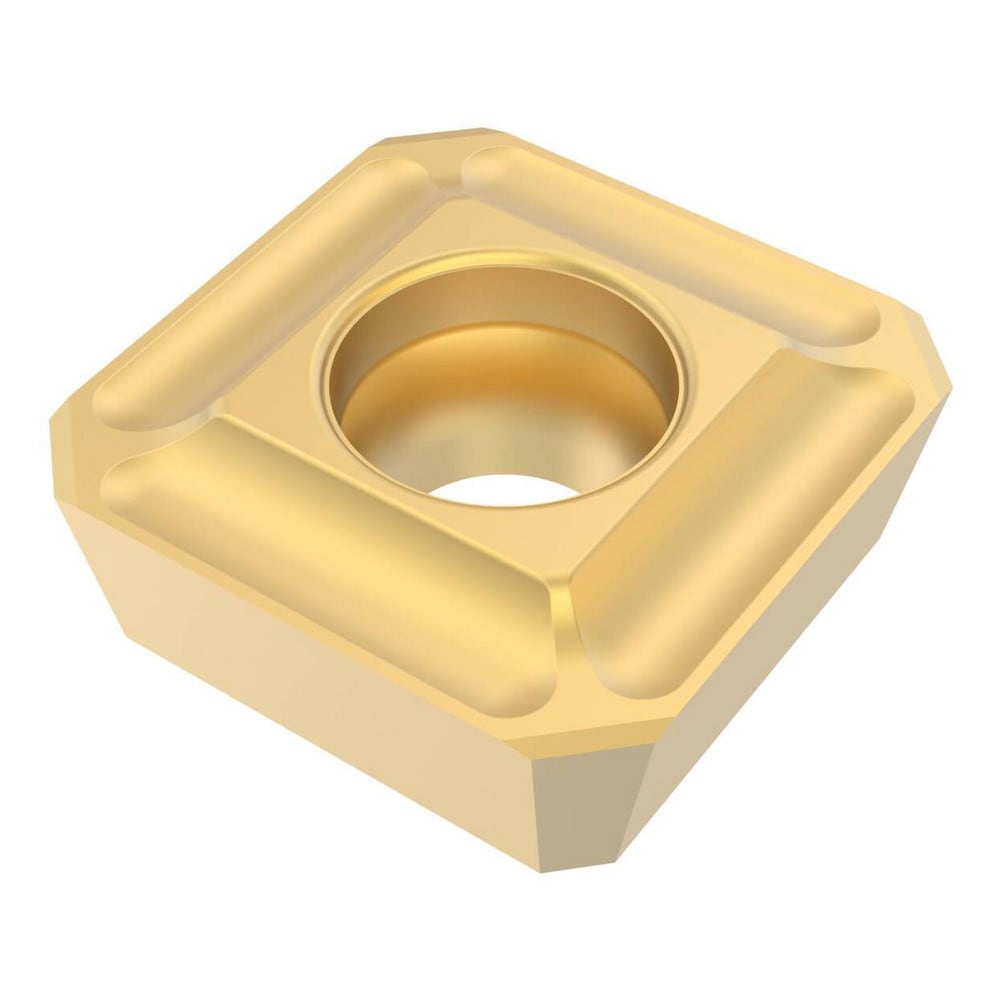

Milling Insert: SPMX1904AP-75 F40M, Solid Carbide
Item #: 70353305
Brand: Seco
Model #: 02505942
Product Specifications
| Insert Style | SPMX |
| Insert Size | 19 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 1904 |
| Material Grade | Fine Grain |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Series | SPMX-19 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Rake | Neutral |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SPMX1904AP-75 |
| Iso Code | SPMX1904AP-75 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SPMX1904AP-75 |
| Chip Breaker | 75 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| Insert Style | SPMX |
| Insert Size | 19 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.0000 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 11.00 |
| Insert Size Code | 1904 |
| Material Grade | Fine Grain |
| Width (Inch) | 5/8 |
| Length (Inch) | 5/8 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.7500 |
| Series | SPMX-19 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Rake | Neutral |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Secondary Workpiece Material | Non-Ferrous Metal; Cast Iron |
| Secondary Workpiece Material Code | K; N |
| Ansi Code | SPMX1904AP-75 |
| Iso Code | SPMX1904AP-75 |
| Standards | ISO |
| Rake Angle | 0 |
| Cutting Edge Style | T-Land |
| Manufacturers Catalog Number | SPMX1904AP-75 |
| Chip Breaker | 75 |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.6250 |
| Length (Decimal Inch - 4 Decimals) | 0.6250 |
| MSC Part # | 70353305 |
| Mfr Part # | 02505942 |
| Country of Origin Country of Origin is subject to change | Sweden |
