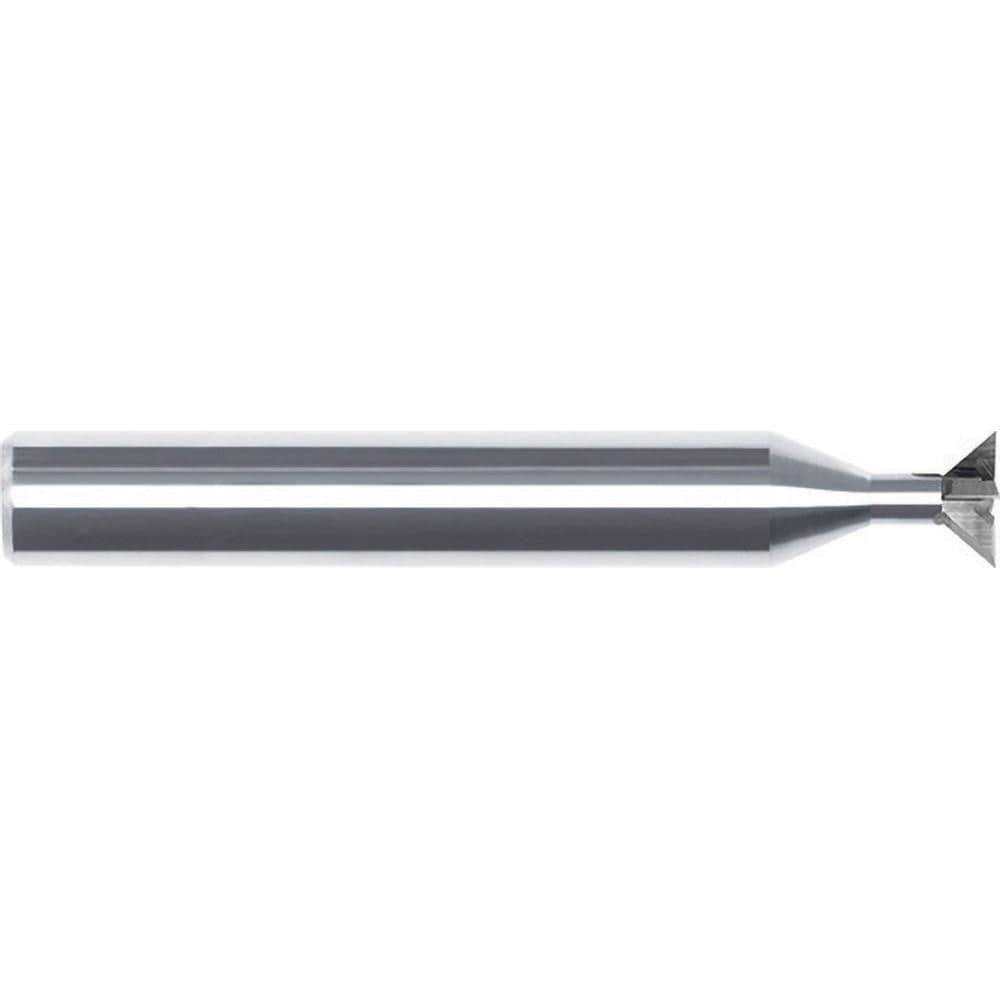

Dovetail Cutters; Included Angle: 90; Cutter Diameter (Inch): 3/4; Cutter Diameter (Decimal Inch): 0.7500; Cutting Width (Decimal Inch): 0.2300
Item #: 37218740
Brand: Internal Tool
Model #: 86-1139-C
Product Specifications
| Included Angle | 90 |
| Cutter Diameter (Inch) | 3/4 |
| Cutter Diameter (Decimal Inch) | 0.7500 |
| Cutting Width (Decimal Inch) | 0.2300 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 3/4 |
| Minimum Cutter Diameter (Decimal Inch) | 0.2900 |
| Coating/Finish | AlTiN |
| Neck Length (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.2900 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 86 |
| Maximum Cutter Diameter (Decimal Inch) | 0.7500 |
| Number Of Teeth | 6 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.5200 |
| UNSPSC Code | 23241632 |
