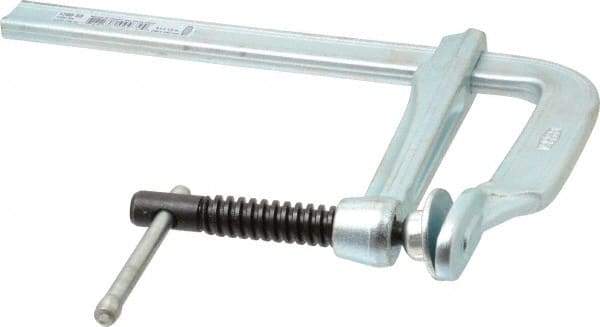

Bessey - 5-1/2" Deep Throat, 8" Max Capacity, Standard Sliding Arm Clamp - 1,320 Lb Clamping Pressure, 0.7" Spindle Diam
Item #: 90939950
Brand: Bessey
Model #: 1200-S8
Exact Tooling IR#: 04
Features and Benefits
Sliding arm clamps are used for holding a workpiece in place during an operation. The sliding arm is designed with a rail, pressure plate and sliding jaw for fast clamping action. An extender block or V-pad will be required for some applications.
T-handles are designed with threaded spindles allowing for maximum clamping pressure.
| Product Specifications | |
|---|---|
| Clamp Type | Standard |
| Maximum Capacity (Inch) | 8 |
| Maximum Capacity (Decimal Inch) | 8.0000 |
| Throat Depth (Inch) | 5-1/2 |
| Throat Depth (Decimal Inch) | 5.5000 |
| Handle Style | T-Handle |
| Frame Material | Steel |
| Clamping Pressure (Lb.) | 1320 |
| Series | 1200-S |
| Spindle Diameter (Decimal Inch) | 0.7000 |
| Spindle Material | High Carbon Steel |
| Rail Size (Inch) | 1-3/32 x 7/16 |
| Rail Length (Inch) | 8 |
| Pad Material | Steel |
| Includes | Patented Rail Profile; Replaceable Swivel Pads |
