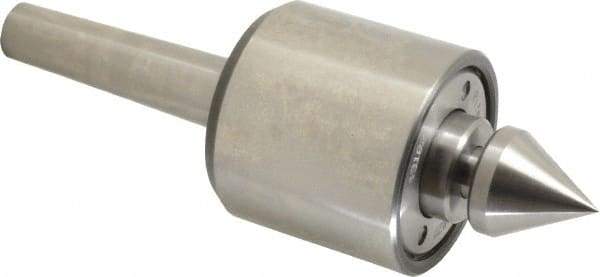

Riten - MT2 Taper Shank, 2-1/8" Head Diam Live Center - 5,000 Max RPM, 2" Head Length, 1" Point Diam, 1/4" Point Len, 100 Lb Max Workpc, 2" OAL, Male Point
Item #: 90936725
Brand: Riten
Model #: 49102
Exact Tooling IR#: 04
Features and Benefits
Male points are used for locating internal chamfers during turning operations.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 100.00 |
| Point Style | Male |
| Point Diameter (Inch) | 1 |
| Point Diameter (Decimal Inch) | 1.0000 |
| Point Length (Inch) | 1/4 |
| Accuracy (Decimal Inch) | 0.000300 |
| Head Diameter (Inch) | 2-1/8 |
| Head Length (Inch) | 2 |
| Overall Length (Inch) | 2 |
| Gage Line Clearance (Inch) | 3/8 |
| Bearing Type | Double Bearing |
| Maximum RPM | 5000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
