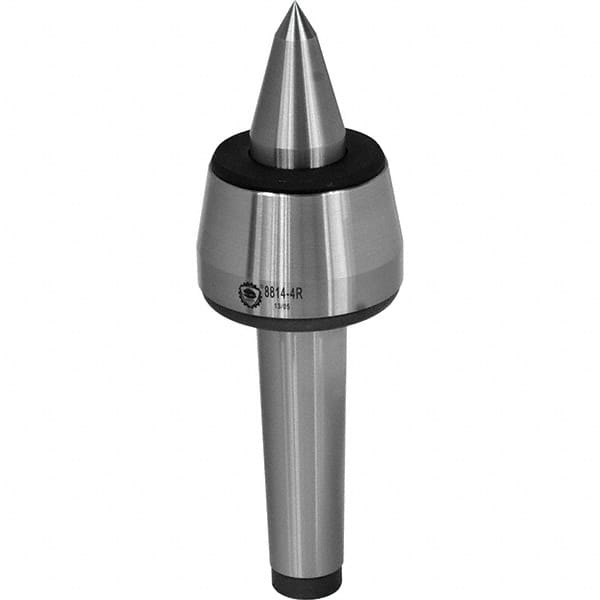

Live Center: Morse Taper Shank 176 lb Workpiece Weight, 7,000 Max RPM, Extended Point
Item #: 90423575
Brand: Bison
Model #: 7-560-001
Product Specifications
| Shank Type | Morse Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT1 |
| Maximum Workpiece Weight (Lb.) | 176.00 |
| Maximum Workpiece Weight (kg) | 80.00 |
| Point Style | Extended |
| Point Diameter (mm) | 15.00 |
| Tip Diameter (mm) | 9.00 |
| Tip Diameter (Decimal Inch) | 9.0000 |
| Tip Diameter (Inch) | 9 |
| Point Length (mm) | 23.00 |
| Accuracy (Decimal Inch) | 0.000400 |
| Accuracy | 0.01 mm; 4.0E-4 in |
| Thrust Load (Lb.) | 1012.00 |
| Thrust Load (daN) | 450.00 |
| Radial Load | 176 lb |
| Head Diameter (mm) | 36.00 |
| Taper Length (Decimal Inch) | 2.1063 |
| Point to Gauge Line (mm) | 66.50 |
| Included Angle | 60 |
| Maximum RPM | 7000 |
| Carbide-tipped Point | No |
