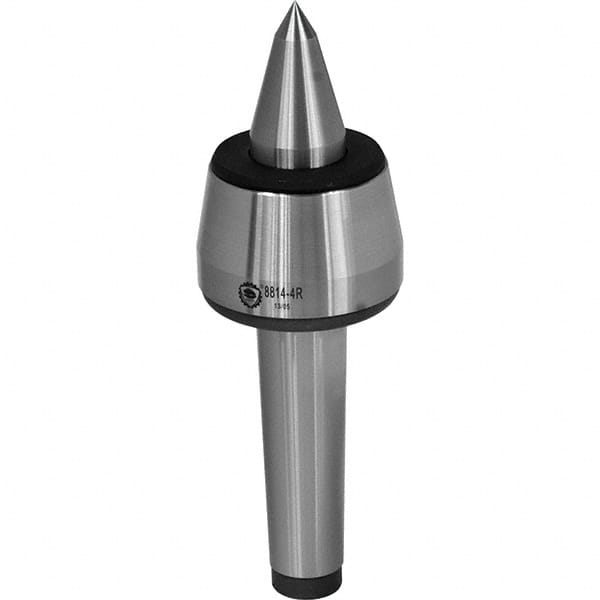

Live Center: Morse Taper Shank 2,645.5 lb Workpiece Weight, 3,000 Max RPM, Standard Point
Item #: 90423559
Brand: Bison
Model #: 7-563-006
Product Specifications
| Shank Type | Morse Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT6 |
| Maximum Workpiece Weight (Lb.) | 2645.50 |
| Maximum Workpiece Weight (kg) | 3500.00 |
| Point Style | Standard |
| Point Diameter (mm) | 42.00 |
| Tip Diameter (mm) | 42.00 |
| Point Length (mm) | 49.00 |
| Accuracy (Decimal Inch) | 0.000800 |
| Accuracy | 0.02 mm; 8.0E-4 in |
| Thrust Load (Lb.) | 5620.00 |
| Thrust Load (daN) | 2500.00 |
| Radial Load | 7700 lb |
| Head Diameter (mm) | 80.00 |
| Taper Length (Decimal Inch) | 7.1654 |
| Point to Gauge Line (mm) | 143.00 |
| Included Angle | 60 |
| Maximum RPM | 3000 |
| Carbide-tipped Point | No |
