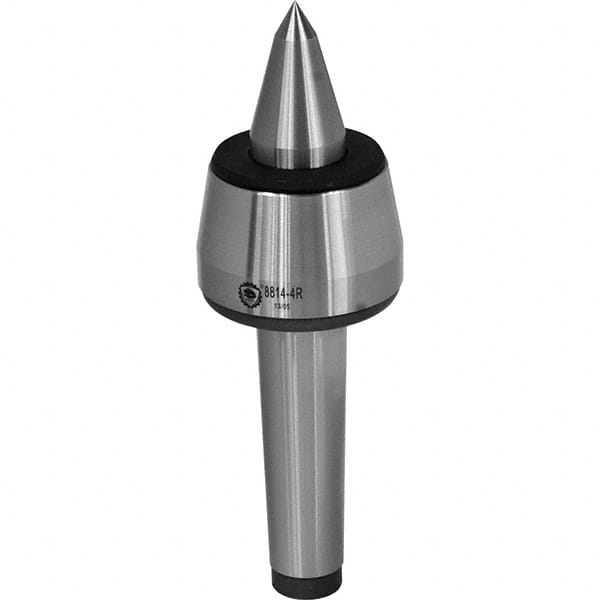

Live Center: Morse Taper Shank 506 lb Workpiece Weight, 3,000 Max RPM, Extended Point
Item #: 90423542
Brand: Bison
Model #: 7-560-005
Product Specifications
| Shank Type | Morse Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT5 |
| Maximum Workpiece Weight (Lb.) | 506.00 |
| Maximum Workpiece Weight (kg) | 1260.00 |
| Point Style | Extended |
| Point Diameter (mm) | 40.00 |
| Tip Diameter (mm) | 16.00 |
| Point Length (mm) | 65.30 |
| Accuracy (Decimal Inch) | 0.000200 |
| Accuracy | 2.0E-4 in; 0.005 mm |
| Thrust Load (Lb.) | 5620.00 |
| Thrust Load (daN) | 2500.00 |
| Radial Load | 2772 lb |
| Head Diameter (mm) | 90.00 |
| Taper Length (Decimal Inch) | 5.0984 |
| Point to Gauge Line (mm) | 144.30 |
| Included Angle | 60 |
| Maximum RPM | 3000 |
| Carbide-tipped Point | No |
