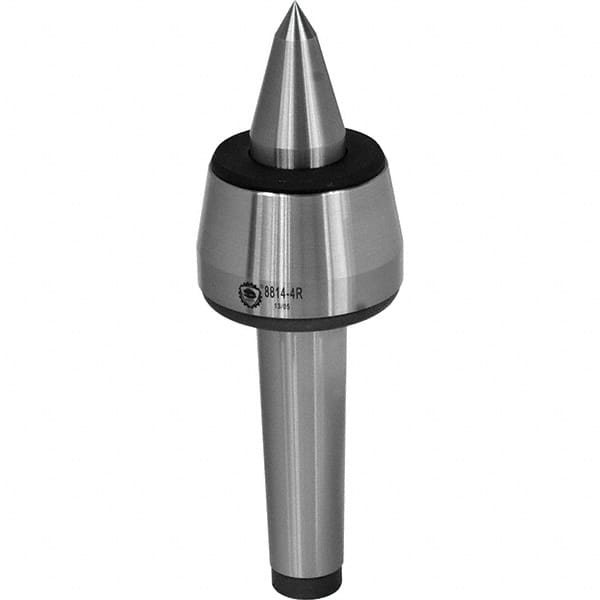

Live Center: Morse Taper Shank 1,000 lb Workpiece Weight, 7,000 Max RPM, Extended Point
Item #: 90423526
Brand: Bison
Model #: 7-562-003
Product Specifications
| Shank Type | Morse Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT3 |
| Maximum Workpiece Weight (Lb.) | 1000.00 |
| Maximum Workpiece Weight (kg) | 340.00 |
| Point Style | Extended |
| Point Diameter (mm) | 15.00 |
| Tip Diameter (mm) | 9.00 |
| Tip Diameter (Decimal Inch) | 9.0000 |
| Tip Diameter (Inch) | 9 |
| Point Length (mm) | 30.00 |
| Accuracy (Decimal Inch) | 0.000300 |
| Accuracy | 0.008 mm; 3.0E-4 in |
| Thrust Load (Lb.) | 1416.00 |
| Thrust Load (daN) | 630.00 |
| Radial Load | 748 lb |
| Head Diameter (mm) | 34.00 |
| Taper Length (Decimal Inch) | 3.1890 |
| Point to Gauge Line (mm) | 74.00 |
| Included Angle | 60 |
| Maximum RPM | 7000 |
| Carbide-tipped Point | No |
