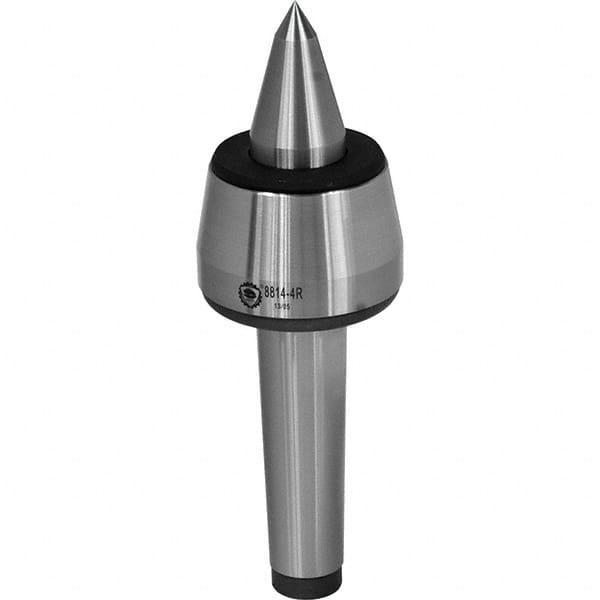

Live Center: Morse Taper Shank 1,540 lb Workpiece Weight, 6,300 Max RPM, Extended Point
Item #: 90423443
Brand: Bison
Model #: 7-562-004
Product Specifications
| Shank Type | Morse Taper |
| Bearing Type | Triple |
| Material | Steel |
| Taper Size | MT4 |
| Maximum Workpiece Weight (Lb.) | 1540.00 |
| Maximum Workpiece Weight (kg) | 700.00 |
| Point Style | Extended |
| Point Diameter (mm) | 20.00 |
| Tip Diameter (mm) | 10.00 |
| Tip Diameter (Decimal Inch) | 10.0000 |
| Tip Diameter (Inch) | 10 |
| Point Length (mm) | 38.00 |
| Accuracy (Decimal Inch) | 0.000300 |
| Accuracy | 0.008 mm; 3.0E-4 in |
| Thrust Load (Lb.) | 1798.00 |
| Thrust Load (daN) | 800.00 |
| Radial Load | 1540 lb |
| Head Diameter (mm) | 42.00 |
| Taper Length (Decimal Inch) | 4.0354 |
| Point to Gauge Line (mm) | 88.50 |
| Included Angle | 60 |
| Maximum RPM | 6300 |
| Carbide-tipped Point | No |
