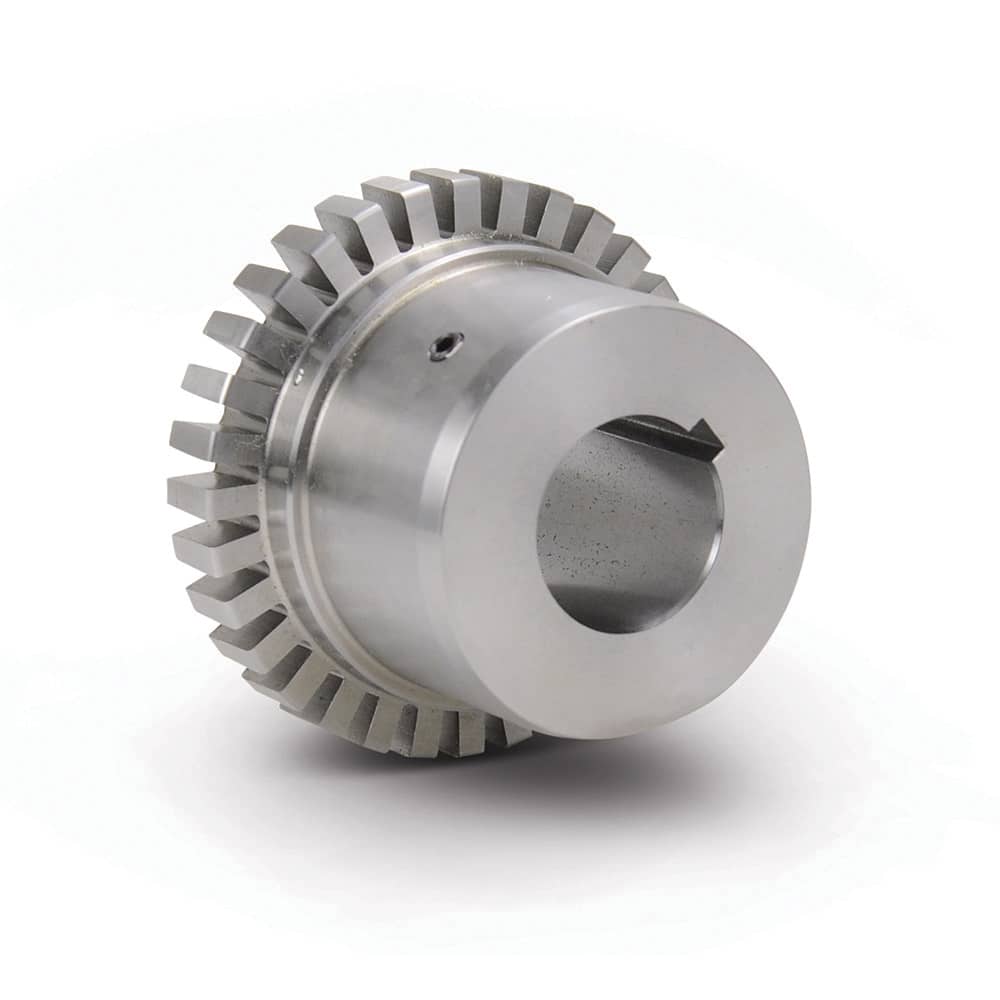

TB Wood's - Flexible Coupling; Type: Coupling Hub ; Bore Diameter (Decimal Inch): 1.4375 ; Maximum Bore Diameter (Inch): 1.4375 ; Outside Diameter (Inch): 4.87 ; Overall Length (Inch): 3.87 ; Material: Steel
Item #: 90347444
Brand: TB Wood's
Model #: 1090T1716
Product Specifications
Flexible Coupling; Type: Coupling Hub ; Bore Diameter (Decimal Inch): 1.4375 ; Maximum Bore Diameter (Inch): 1.4375 ; Outside Diameter (Inch): 4.87 ; Overall Length (Inch): 3.87 ; Material: Steel
| Type | Coupling Hub |
| Bore Diameter (Decimal Inch) | 1.4375 |
| Maximum Bore Diameter (Inch) | 1.4375 |
| Outside Diameter (Inch) | 4.87 |
| Overall Length (Inch) | 3.87 |
| Material | Steel |
| Torque (In/Lb) | 33013 |
| MaximumAssemblyOAL (Inch) | 7.87 |
| Coupling Size | 1090 |
| Series | G-Flex Coupling |
