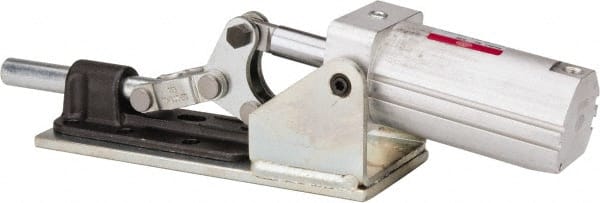

De-Sta-Co - 2,500 Lb Capacity, 1-1/4" Plunger Travel, 3/8-16 x 3/8" Plunger, 1/8 NPT Port, 3,582 N at 5 Bar, Air Power Straight Line Action Clamp
Item #: 89305189
Brand: De-Sta-Co
Model #: 830
Product Specifications
| Power Type | Pneumatic |
| Load Capacity (N) | 11120.60 |
| Load Capacity (Lb.) | 2500.00 |
| Plunger Travel (mm) | 31.75 |
| Plunger Travel (Decimal Inch) | 1.2500 |
| Plunger Thread Size | 3/8-16 |
| Plunger Diameter (Decimal Inch) | 0.3750 |
| Plunger Diameter (Inch) | 3/8 |
| Port Size | 1/8 NPT |
| Clamping Force @ 5 Bar (N) | 3582.00 |
| Plunger Centerline Height (mm) | 26.92 |
| Plunger Centerline Height (Decimal Inch) | 1.0600 |
| Overall Closed Length (mm) | 290.30 |
| Overall Closed Length (Decimal Inch) | 11.43 |
| Overall Closed Height (mm) | 91.10 |
| Overall Closed Height (Decimal Inch) | 3.59 |
| Mounting Hole Diameter (mm) | 8.64 |
| Mounting Hole Diameter (Decimal Inch) | 0.3400 |
| Length Distance Between Mount Holes (mm) | 35.10; 41.10 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.3800; 1.6200 |
| Width Distance Between Mount Holes (mm) | 41.28 |
| Width Distance Between Mount Holes (Inch) | 1-5/8 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6250 |
| Maximum Air Pressure (psig) | 145.00 |
| Maximum Air Pressure (bar) | 10.00 |
| Sensor Compatibility | Round; T-Slot |
| Minimum Operating Temperature (F) | 14.00 |
| Minimum Operating Temperature (C) | -10.00 |
| Maximum Operating Temperature (F) | 194.00 |
| Maximum Operating Temperature (C) | 90.00 |
