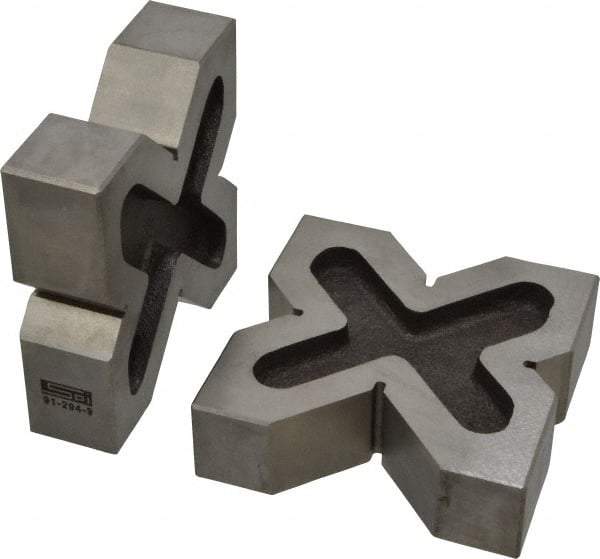

SPI - 3/4 to 2" Capacity, 90° Angle, Cast Iron 4-Way V-Block - 4" Long x 1-3/16" Wide x 4" High, Sold as Matched Pair
Item #: 88637293
Brand: SPI
Exact Tooling IR#: 04
Features and Benefits
4-Way V-Blocks are designed with four different sized V-grooves in the block for different sized workholding operations. They used for detecting and inspecting cylindrical parts and are ground and machined square and parallel.
| Product Specifications | |
|---|---|
| Type | 4-Way V-Block |
| Sold As | Matched Pair |
| Overall Length (mm) | 101.60 |
| Overall Length (Inch) | 4 |
| Overall Width (mm) | 30.16 |
| Overall Width (Inch) | 1-3/16 |
| Overall Height (mm) | 101.60 |
| Overall Height (Inch) | 4 |
| V Angle | 90.00 |
| Minimum Capacity of V (mm) | 19.05 |
| Minimum Capacity of V (Inch) | 3/4 |
| Maximum Capacity of V (mm) | 50.80 |
| Maximum Capacity of V (Inch) | 2 |
| Material | Cast Iron |
| Squareness Per 1 Inch (Decimal Inch) | 0.0012 |
| Squareness Per 1 Inch (micro m) | 30.00 |
| V Parallelism (Decimal Inch) | 0.0012 |
| V Parallelism (micro m) | 30.00 |
| Magnetic | No |
