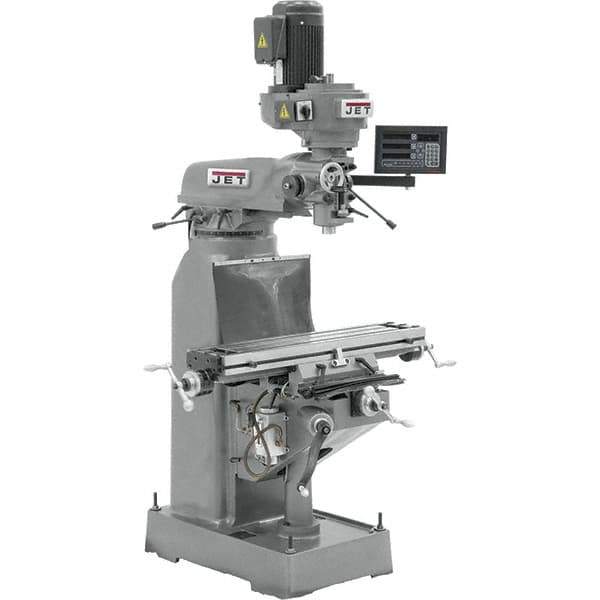

Jet - 7-7/8" Table Width x 35-3/4" Table Length, Step Pulley Control, 1 Phase Knee Milling Machine - R8 Spindle Taper, 1-1/2 hp
Item #: 88602800
Brand: Jet
Model #: 690177
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase lines.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Table Length (Inch) | 35-3/4 |
| Table Width (Inch) | 7-7/8 |
| Phase | 1 |
| Longitudinal Travel (Decimal Inch) | 22.2500 |
| Cross Travel (Decimal Inch) | 9.5000 |
| Knee Travel (Decimal Inch) | 14.0000 |
| Number of Spindle Speeds | 5 |
| Maximum Spindle Speed (RPM) | 1550.00 |
| Minimum Spindle Speed (RPM) | 240.00 |
| Spindle Travel Length (Inch) | 5-1/4 |
| Spindle Taper Size | R8 |
| Quill Diameter (Inch) | 3-3/8 |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Maximum Spindle To Column Distance (Decimal Inch) | 5.2500 |
| Table Load Capacity (Lb.) | 500.00 |
| Number of T-Slots | 2 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Ram Travel Length (Inch) | 10-1/2 |
| Horsepower (HP) | 1.50 |
| Voltage | 230 |
| Overall Length (Decimal Inch) | 66.0000 |
| Overall Height (Inch) | 67 |
| Overall Depth (Decimal Inch) | 56.0000 |
