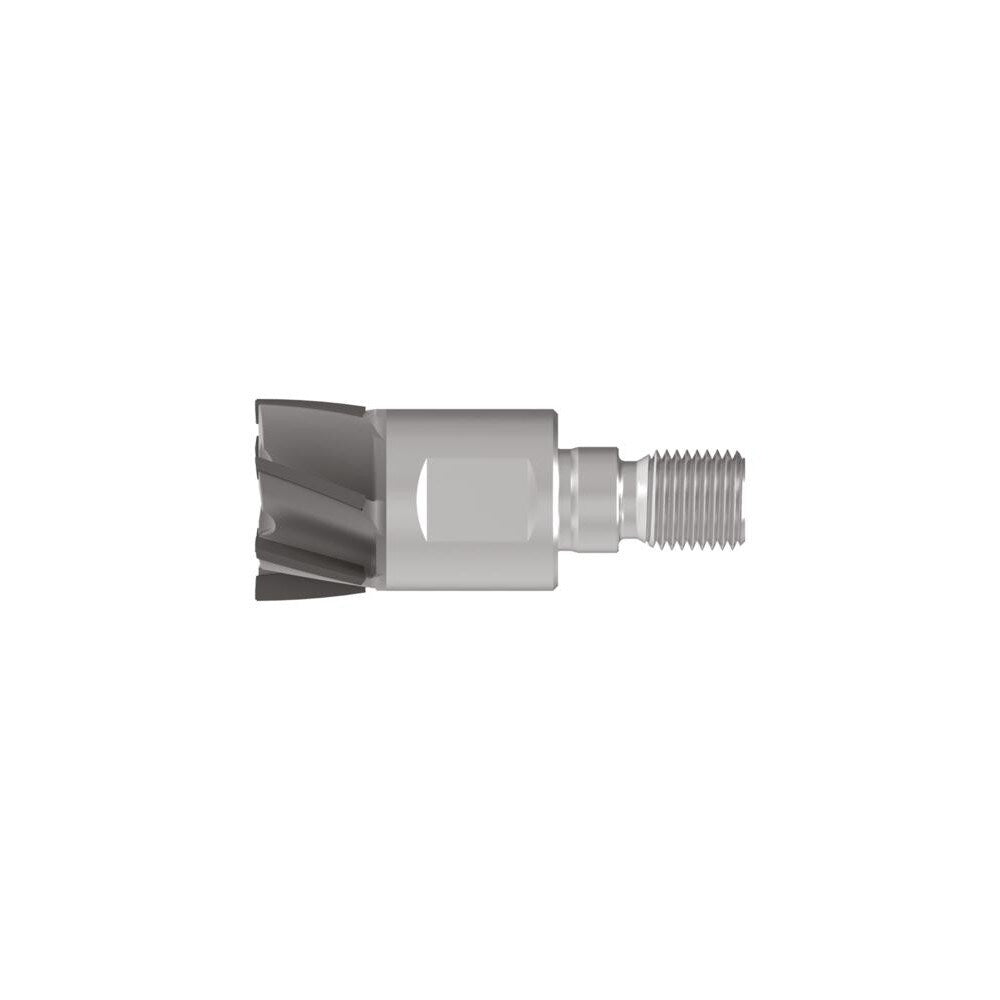

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 20.00; Chamfer Width (mm): 0.200; Chamfer Angle: 45.000; Length of Cut (mm): 10.0000; Number Of Flutes: 6
Item #: 89746465
Brand: WNT
Model #: 5001520100
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.200 |
| Chamfer Angle | 45.000 |
| Length of Cut (mm) | 10.0000 |
| Number Of Flutes | 6 |
| Overall Length (mm) | 54.5000 |
| Coating/Finish | PCD |
| End Mill Material | Solid Carbide |
| Centercutting | No |
| Connection Type | SAM |
| Flute Type | Variable |
| Series | 50015 |
| Helix Angle | 20 |
| Cutting Direction | Right Hand |
| Flute Direction | Left Hand |
| UNSPSC Code | 27112803 |
| Country of Origin | Germany |
