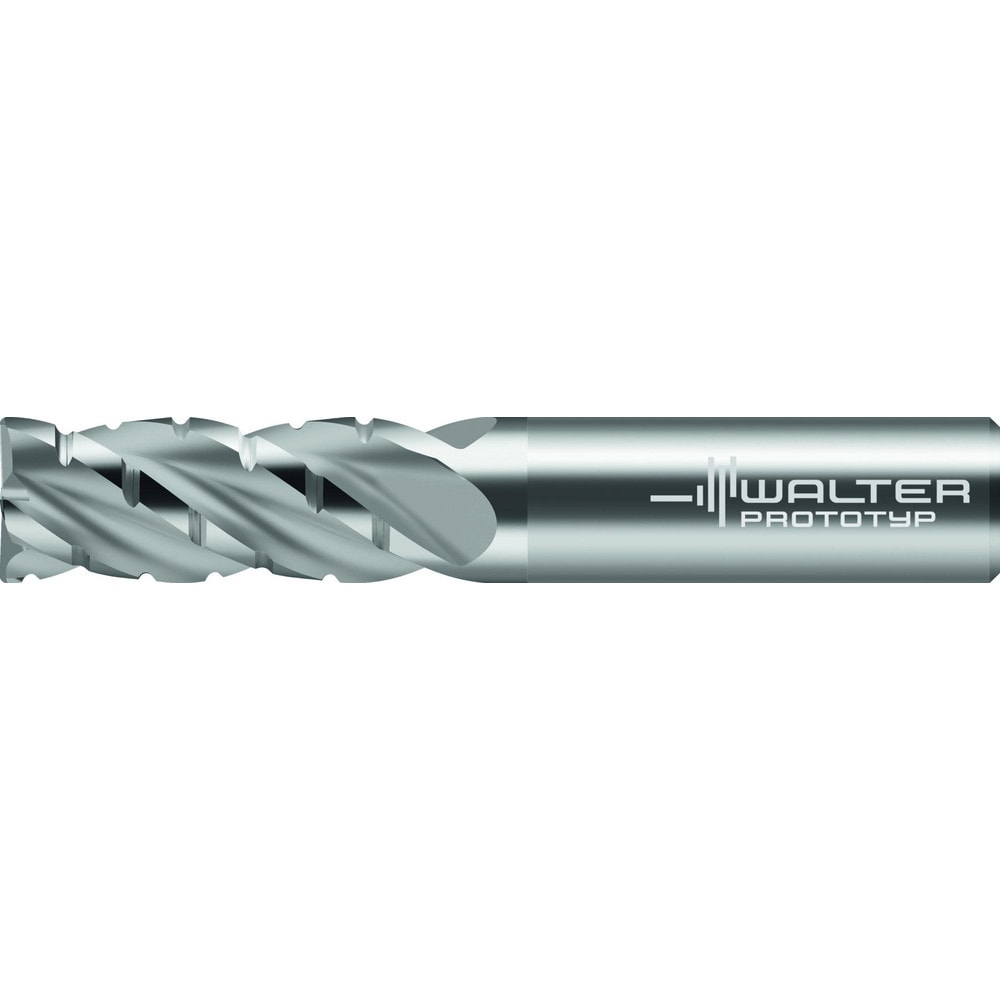

Corner Radius End Mill: 3/4" Dia, 2-1/4" LOC, 0.0325" Radius, 4 Flute, Solid Carbide
Item #: 07649106
Brand: Walter-Prototyp
Model #: 8416782
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0325 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Chipbreaker | Yes |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Inch) | 3/4 |
| Reach Length (Decimal Inch) | 3.3071 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M |
| Series | MA321.A-4-R |
| Proprietary Coating Designation | WJ30UU |
| Manufacturers Catalog Number | MA321.19.1A4D083J-WJ30UU |
