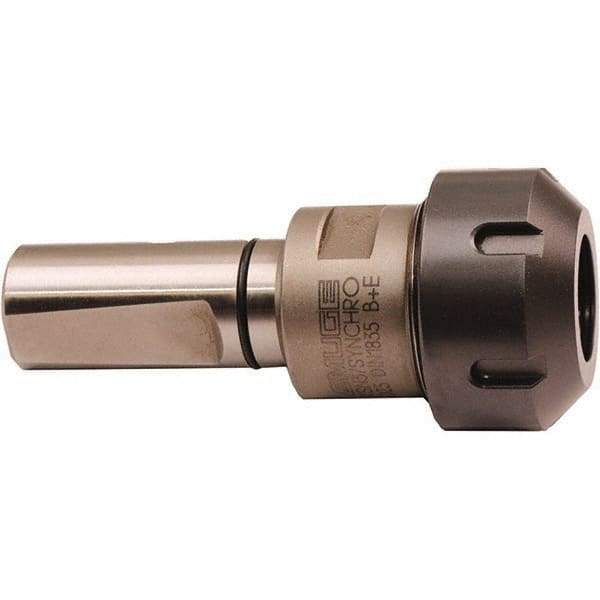

Emuge - 1" Straight Shank Diam Rigid Tapping Adapter - M10 Min Tap Capacity, 2.5591" Projection, Through Coolant
Item #: 88100326
Brand: Emuge
Model #: F3134H36.1.24
Exact Tooling IR#: 04
Features and Benefits
Rigid or solid tapping styles are used for general purpose CNC machining. The rigid tapping cycle synchronizes the machine and spindle rotation to match a specific thread pitch. It is used at higher speeds, but does not compensate for length during the taping cycle.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Rigid |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (mm) | M10 |
| Projection (Decimal Inch) | 2.5591 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 7.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.2756 |
| Maximum Collet Capacity (Decimal Inch) | 0.8661 |
| Maximum Collet Capacity (mm) | 22.00 |
| Collet System | ER Tap |
| Holder Series | KSN4/Synchro |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Tap Depth (mm) | 37.00 |
| Overall Length (Decimal Inch) | 4.8426 |
| Through Coolant | Yes |
