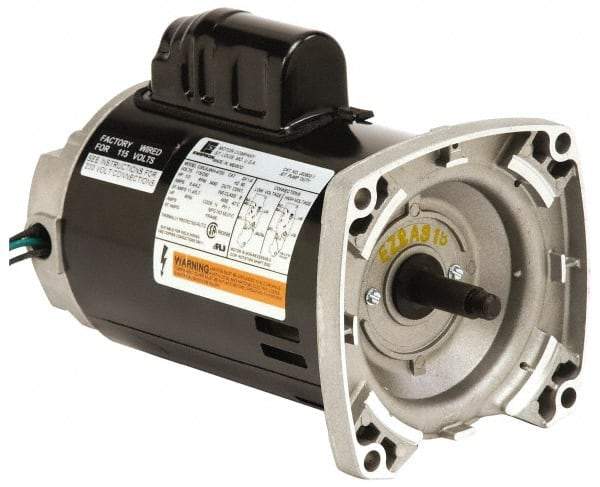

US Motors - 3/4 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56 Frame, Square Flange Mount, 1 Speed, Ball Bearings, 11.6/5.8 Full Load Amps, B Class Insulation, CCW Drive End
Item #: 87959565
Brand: US Motors
Model #: JS0752-1
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56 |
| Mount Type | Square Flange |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 11.6/5.8 |
| Insulation Class | B |
| Full Load Efficiency Rating | 73.90 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.65 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
