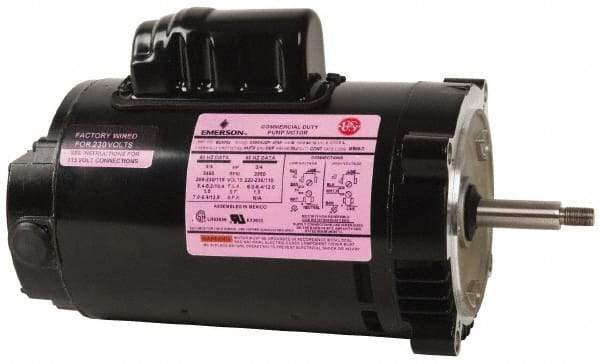

US Motors - 3/4 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115/208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 56J Frame, J-Face Mount, 1 Speed, Ball Bearings, 10.4/5.4-5.2 Full Load Amps, B Class Insulation, CCW Drive End
Item #: 87959029
Brand: US Motors
Model #: EU0752
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 3/4 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/208-230 |
| Frequency Hz | 60 |
| Frame Size | 56J |
| Mount Type | J-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 10.4/5.4-5.2 |
| Insulation Class | B |
| Full Load Efficiency Rating | 77.70 |
| Motor Run Capacitor Micro Farid | 0.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.50 |
| Motor Rotation | CCW Drive End |
| PSC Code | 6105 |
